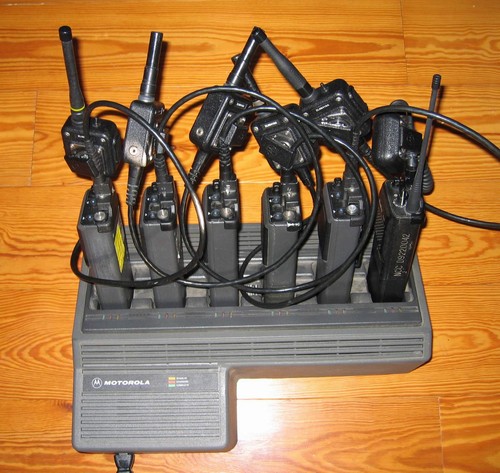

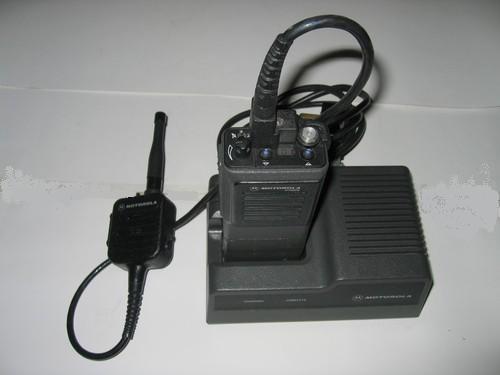

Motorola HT600E
Former Police radio from the UK
99 channels, UHF 438(432) - 470 MHz








More HT600E, VHF and UHF.

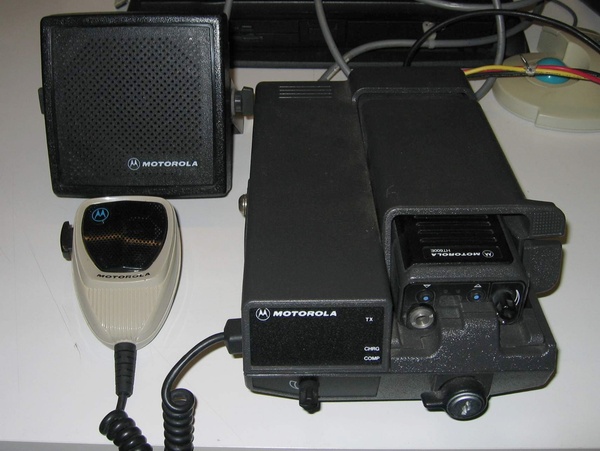

Motorola Convertacom
For HT600 and HT800

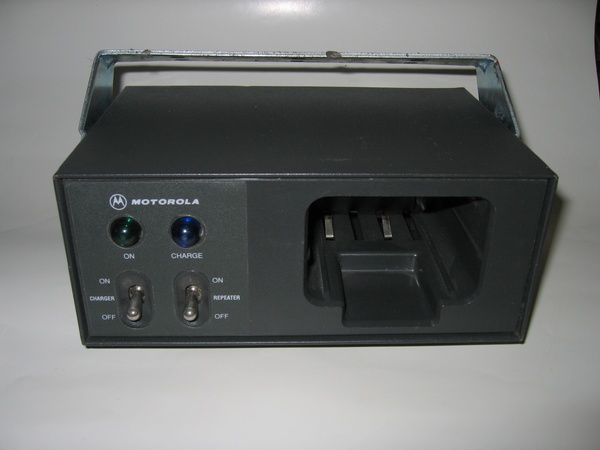

Motorola mobile charger
For HT600 and HT800









Motorola HT800, UHF
403 - 432 (437) MHz

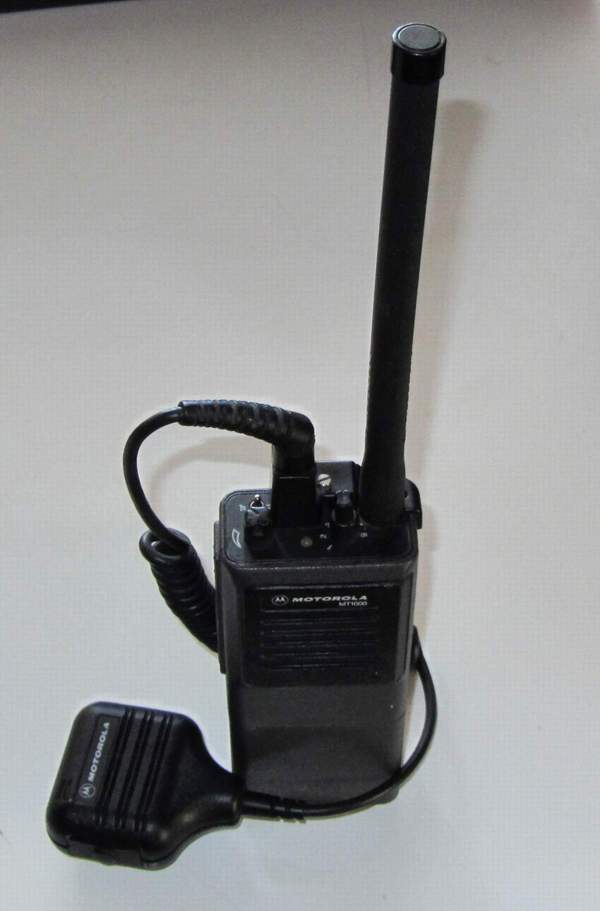

Motorola MT1000, VHF Lowband
42-50 (52) MHz
Programmed for 6 Meter Amateur band

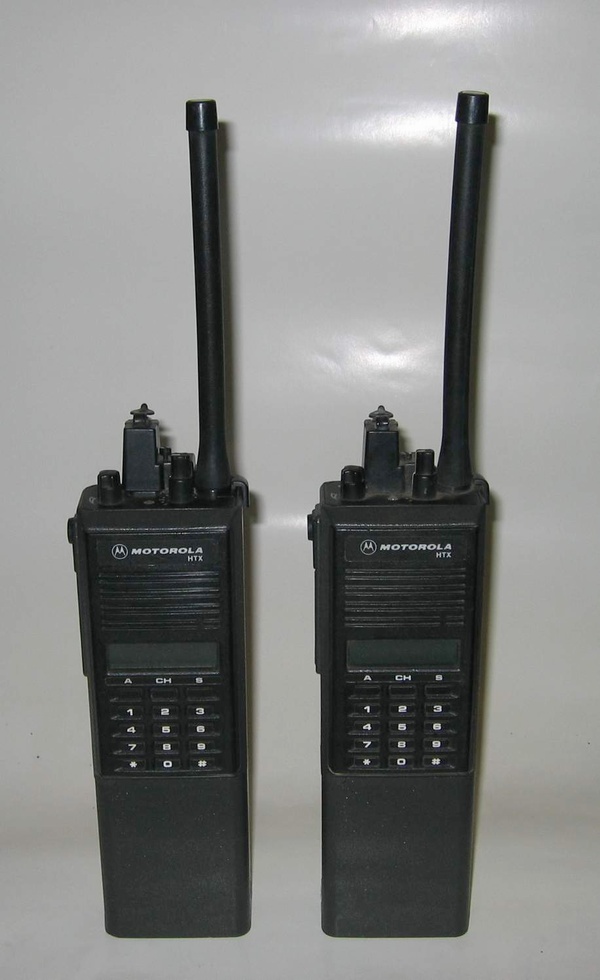

Motorola HTX, VHF
136 - 174 MHz

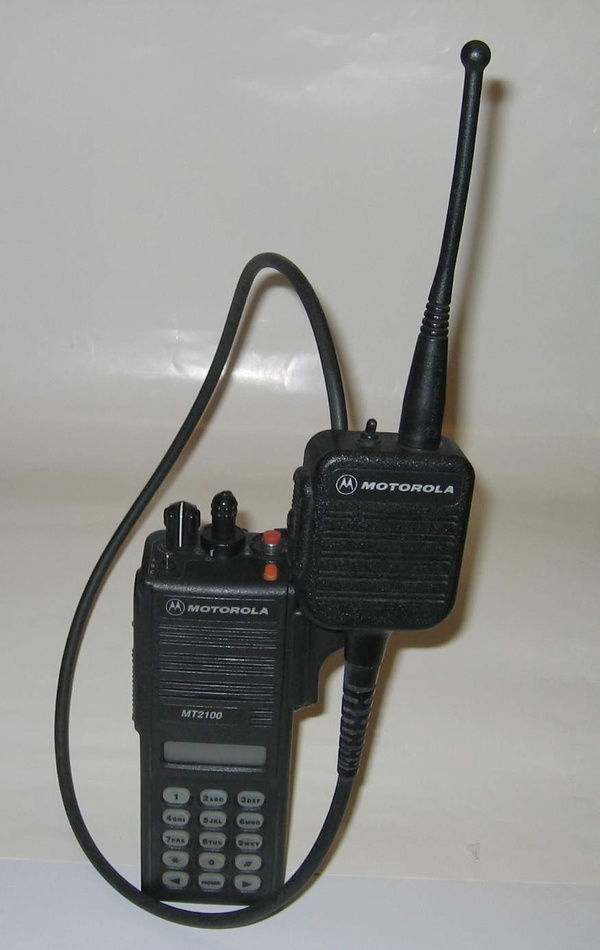

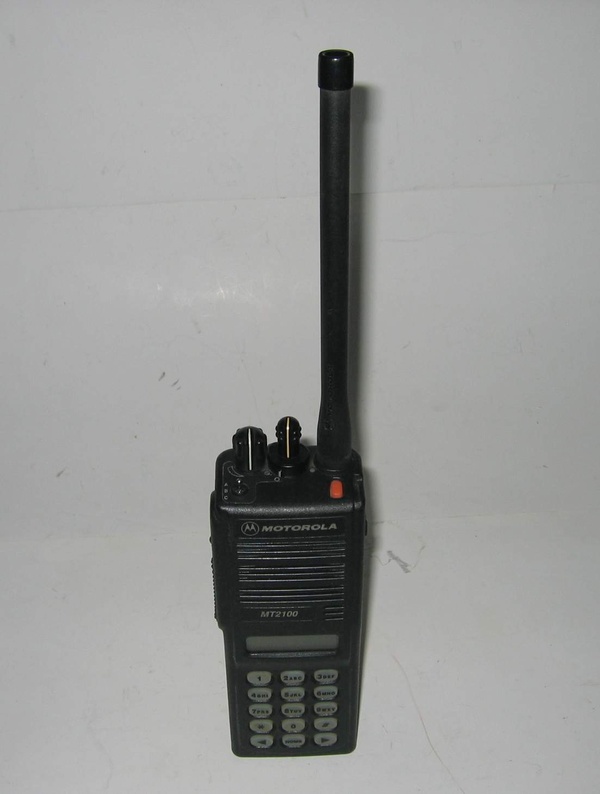

Motorola MT2100, VHF
136 - 178 MHz
Programmed for 2 m amateur band and Marine VHF








Motorola MT2100, UHF
403 - 470 MHz
Programmed for 70 cm amateur band and Police S-80








Motorola MX3000, UHF
440 (432) - 470 MHz








Motorola MX1000, MB
Model: H42SAN9109_N
Finns i 2 olika frekvensband:
68-84 MHz
eller 74-88 MHz
Frekvensbandet kan ej utläsas av modellkoden, läs in proggen från radion
för att ta reda på vilket band radion kan jobba på.
Kan programmeras +/-  ca 2-3 MHz "Out Of Band" (beroende på radio).
Programmet accepterar bara progg inom bandgränserna, frekvenser utanför
bandet måste läggas in med HEX-editering av kodfilen.

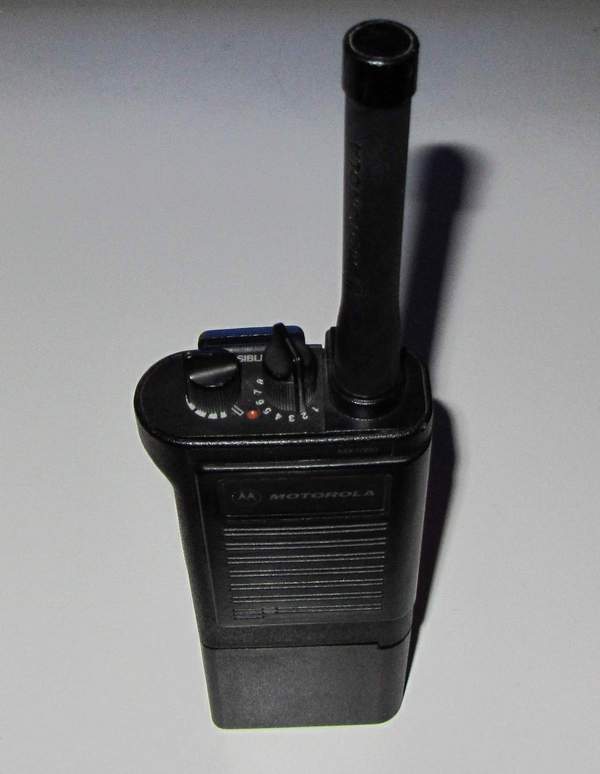

Motorola MX1000, MB
Model: H42SAN9109_N

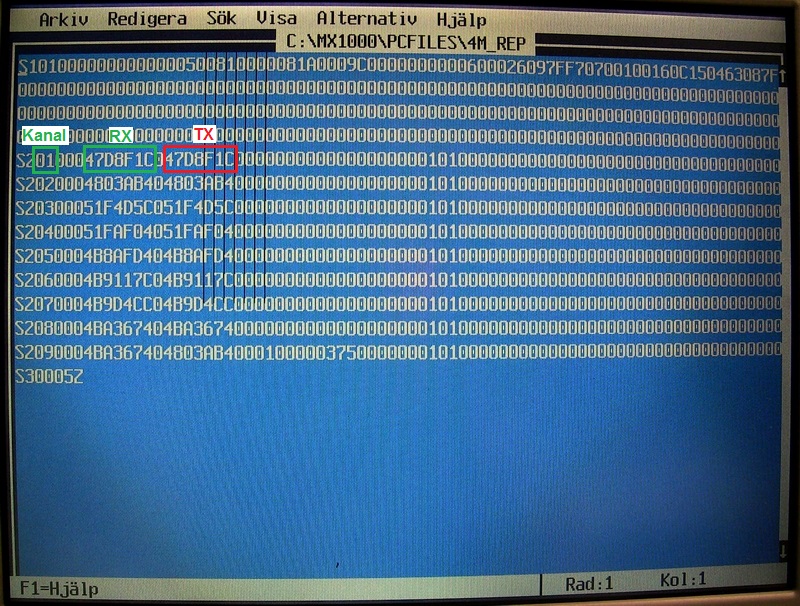

Kodplugg med kanalinformation.
HEX 47D8F1C = DEC 75337500 (75.3375 MHz)
Om man vill lägga in frekvenser utanför bandgränsen, omvandlar man frekvensen
till HEX-kod, och lägger in den på önskad kanalrad.
Varning! Gå ej in på kanalinformationen i programmet när ändringen är gjord.
 Om man gör det, kan ändringen försvinna, och man måste göra om proceduren.








Motorola GP300 Sel-5, UHF
403 - 433 (450) MHz
With prog-adapter

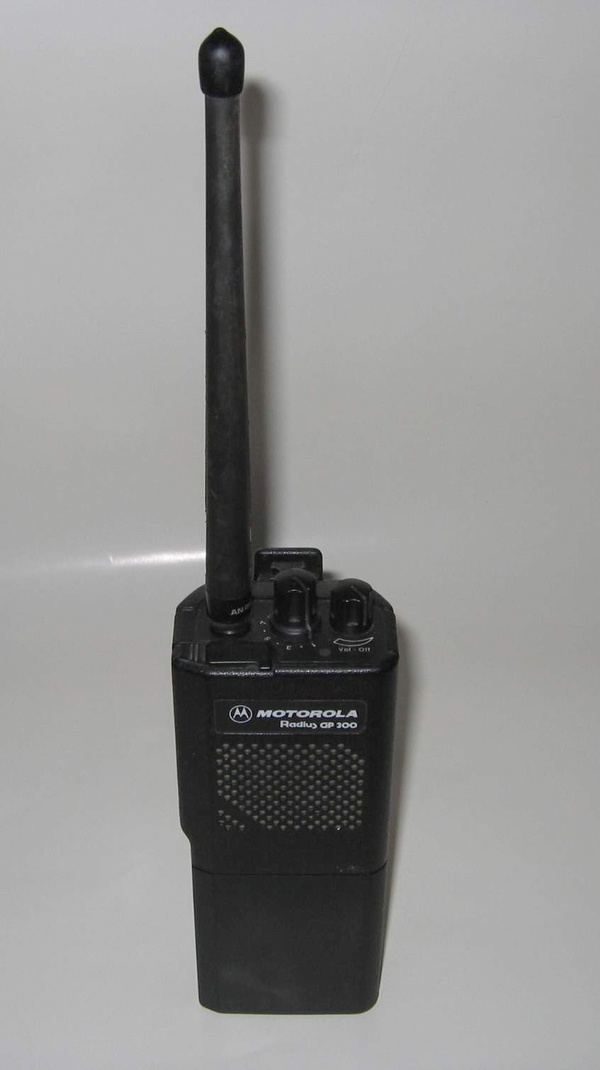

Motorola GP300, UHF
403 - 433 (450) MHz

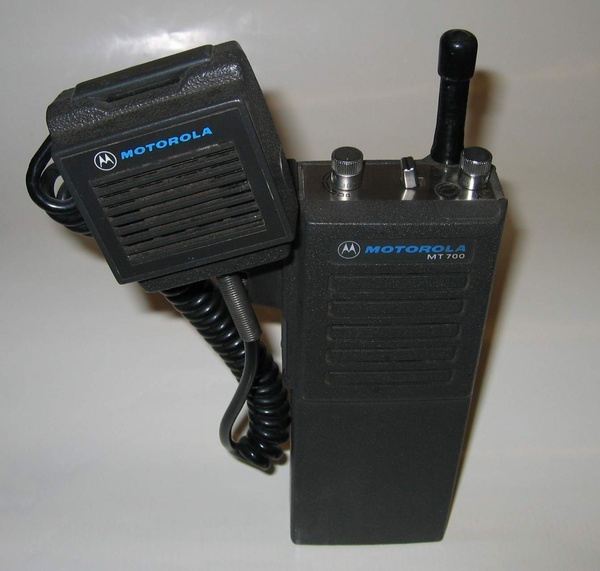

Motorola MT 700, UHF
450 MHz

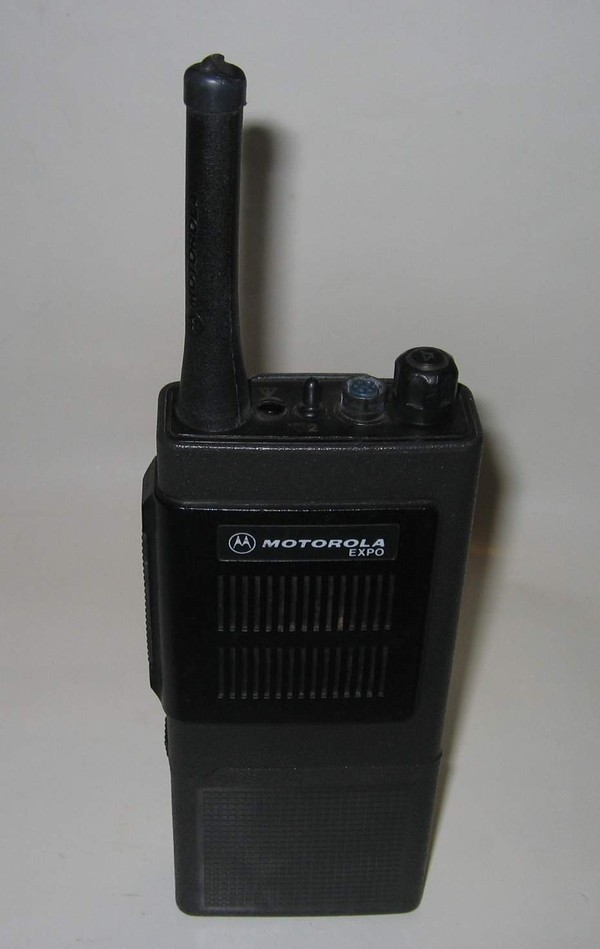

Motorola Expo
UHF

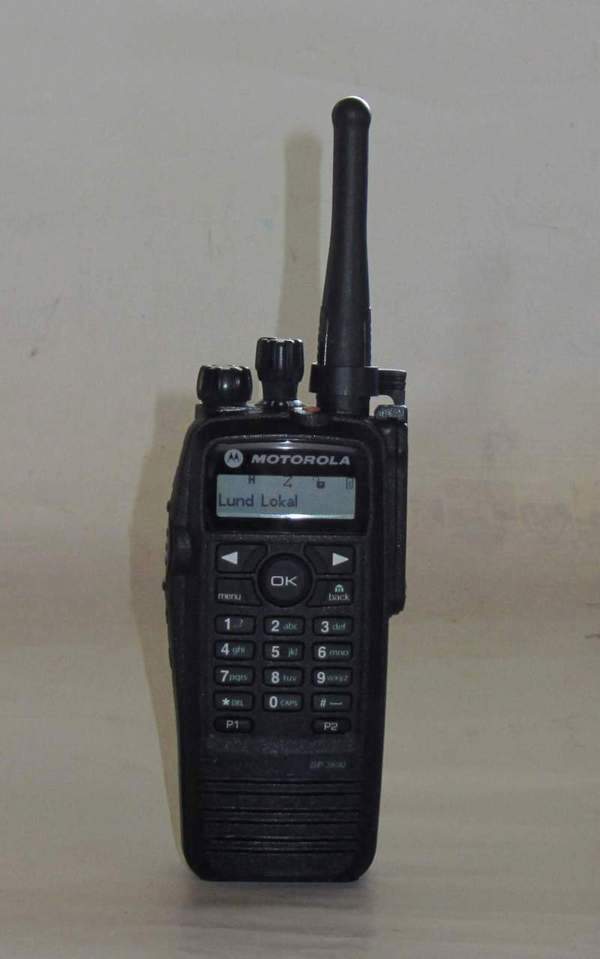

Motorola DP3600
Mototrbo DMR

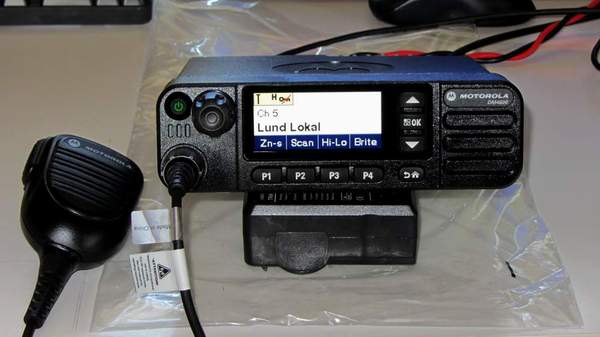

Motorola DM4600
Mototrbo DMR








Motorola DM3600
Mototrbo DMR

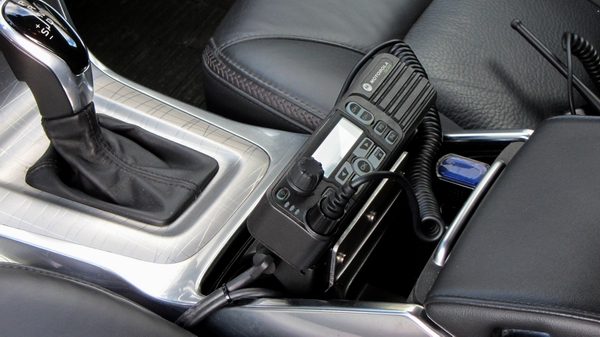

Installed with remote kit in my Volvo XC70 (2016)








Motorola DM3600
Mototrbo DMR
Installed with remote kit in my Volvo XC60 (2023)

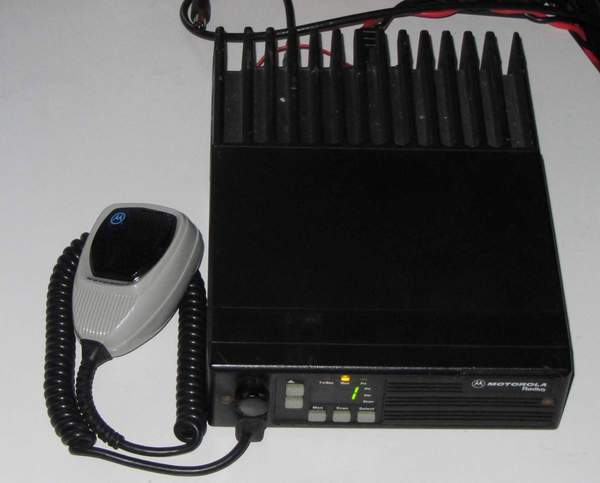

Motorola Radius, 16 Channels
Lowband, tuned for 50-52 MHz Amateur band
Output 60 Watts








Motorola Radius, 16 Channels
Lowband, tuned for 50-52 MHz Amateur band
Output 60 Watts

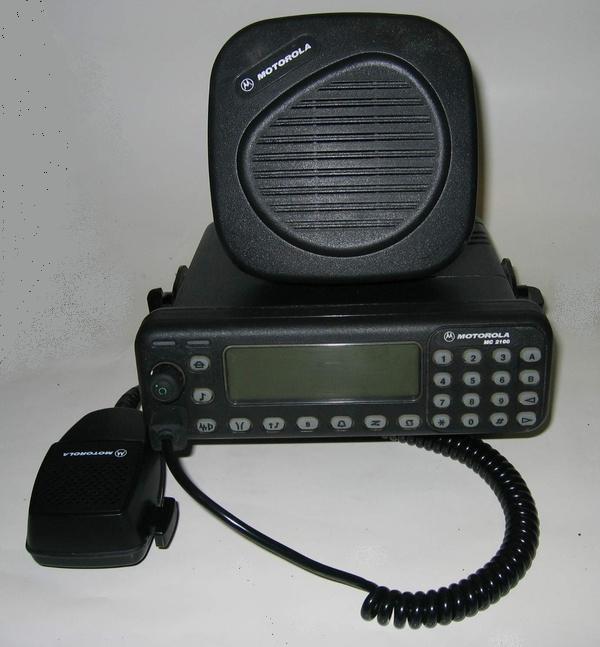

Motorola MC2100, VHF
136 - 174 MHz

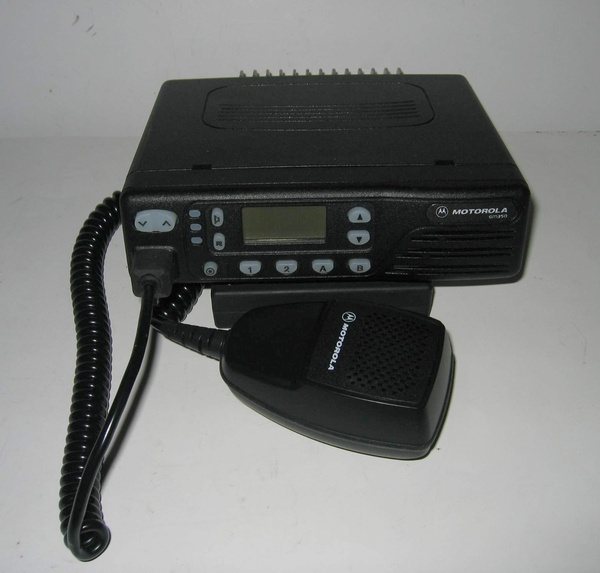

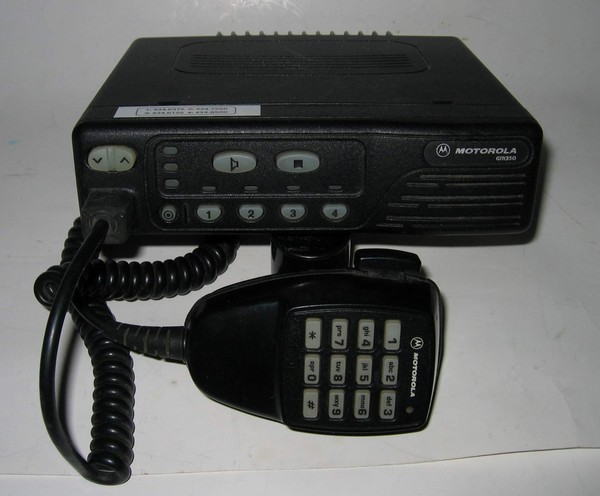

Motorola GM350, VHF
136 - 178 MHz








Motorola GM350, UHF
403 - 470 MHz
DTMF Mic

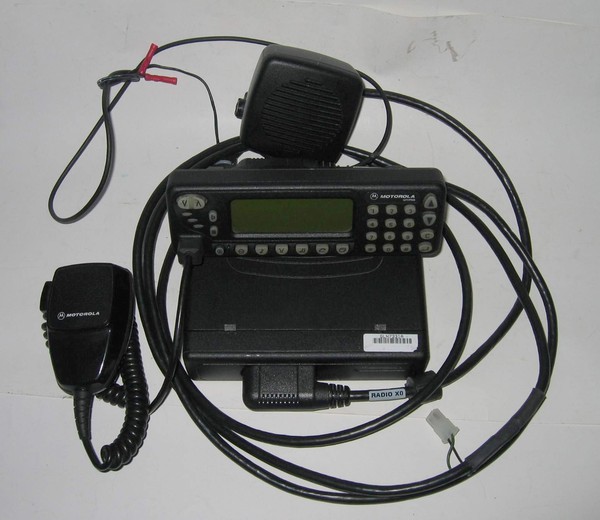

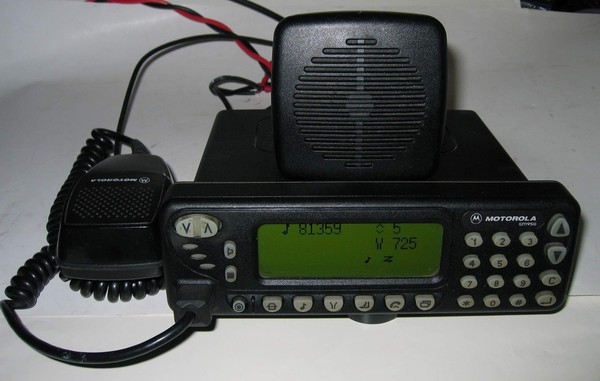

Motorola GM950, N4, UHF
403 - 470 MHz








Motorola GM950, N4, UHF
403 - 470 MHz
Remote kit

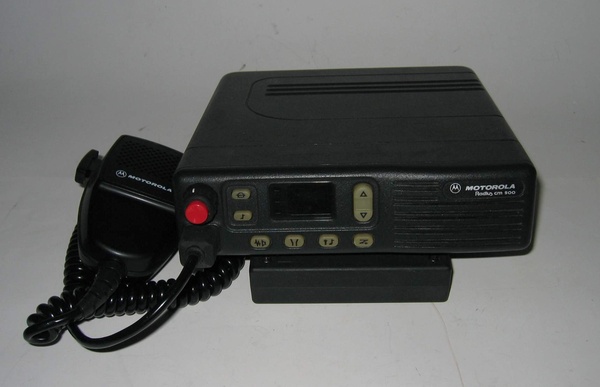

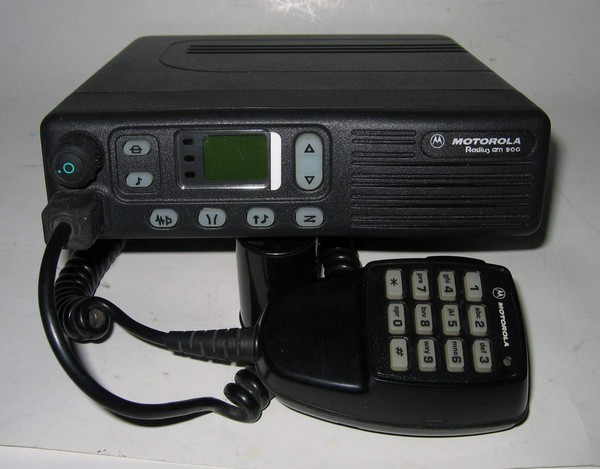

Motorola GM900, VHF
136 - 178 MHz








Motorola GM900 UHF
403 - 470 MHz
DTMF Mic

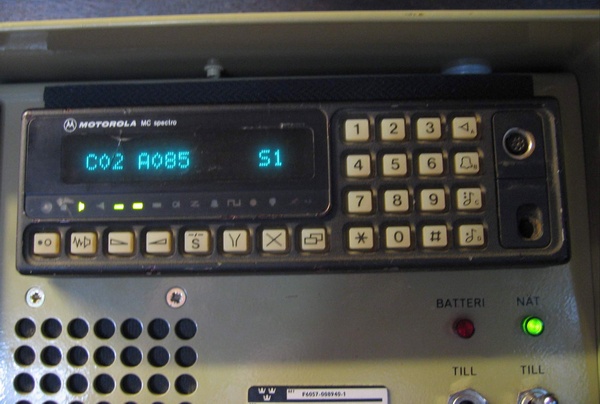

Motorola MC spectro
VHF Midband 66-88 MHz
This is a Stornophone 6000 with a Motorola front panel

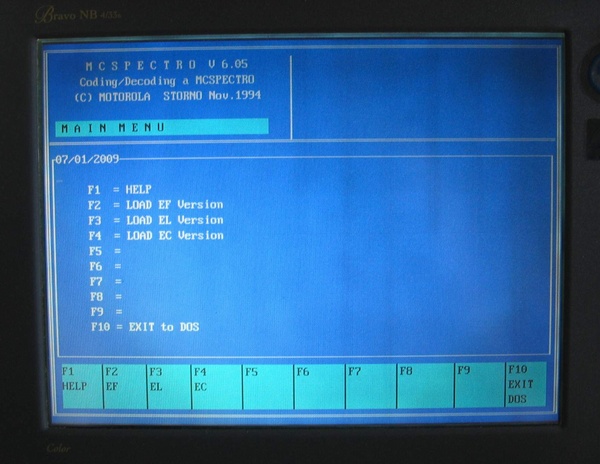

RSS for MC Spectro

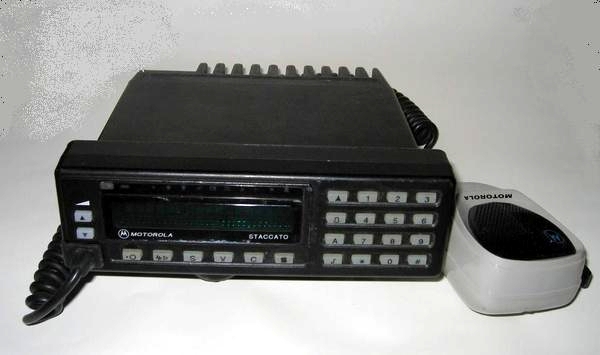

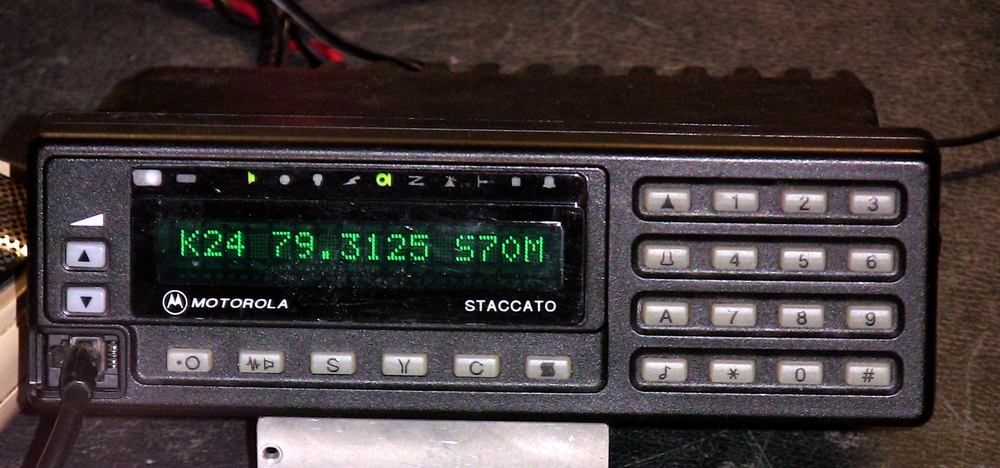

Motorola Staccato, VHF
136 - 174 MHz
Programmed for 2 m amateur band

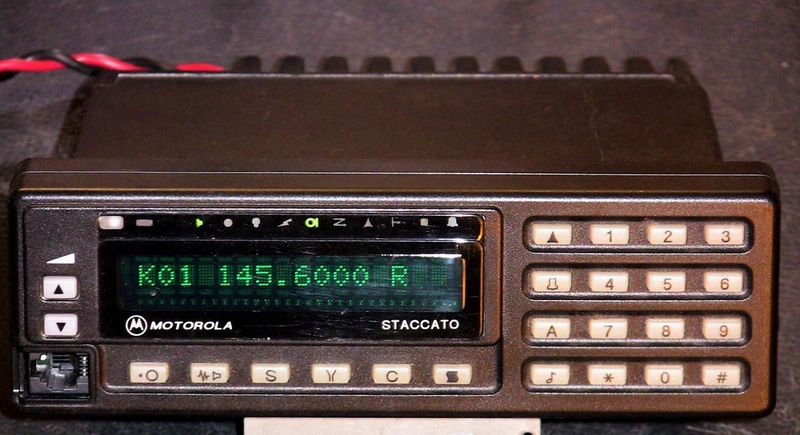

Motorola Staccato, VHF
136 - 174 MHz
Programmed for 2 m amateur band








Motorola Staccato, VHF midband
66 - 88 MHz
Programmed for Police, Ambulance and Fire Department








Motorola Staccato, VHF midband
66 - 88 MHz
Programmed for Police, Ambulance and Fire Department

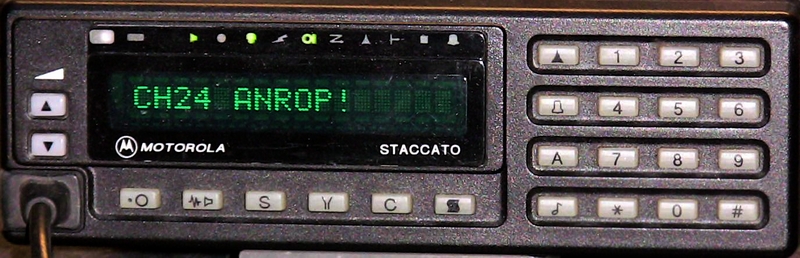

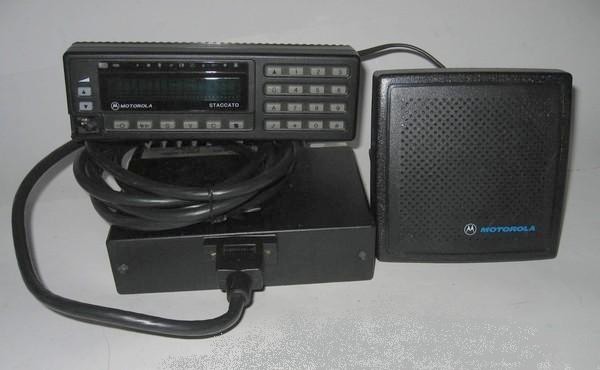

Motorola Staccato
Called by CCIR








Motorola Staccato
Who Has Called (WHC) function
Swedish: Vem Har Sökt (VHS)

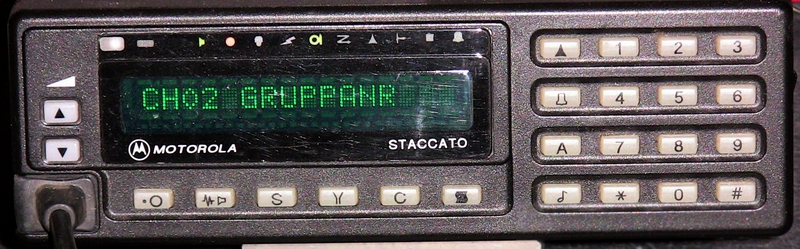

Motorola Staccato
Group Call








Motorola Staccato
Programming Software
Swedish "Åkeri program"

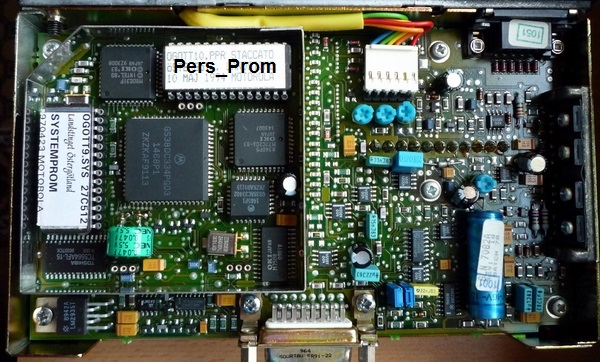

Motorola Staccato
Control circuitry from Stornophone 6000, and RF circuitry  from
Motorola MC Micro

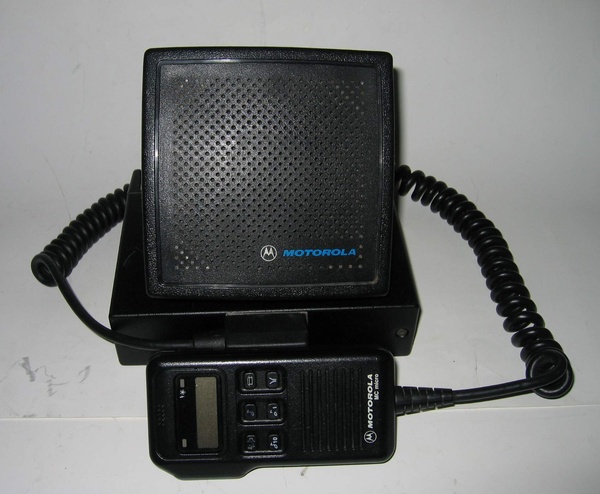

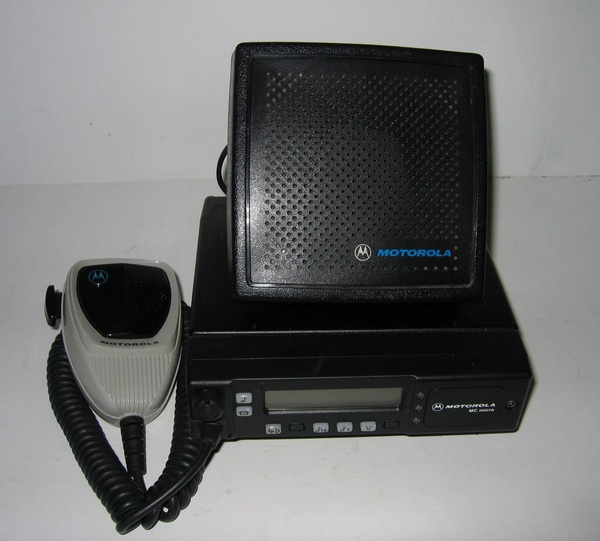

Motorola MC Micro, VHF
136 - 174 MHz









Motorola MC Micro, VHF Midband
68 - 88 MHz

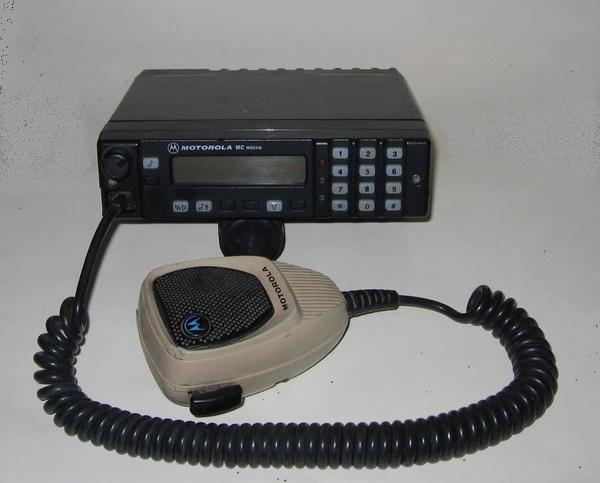

Motorola MC Micro Sel 5, UHF
403 - 470 MHz

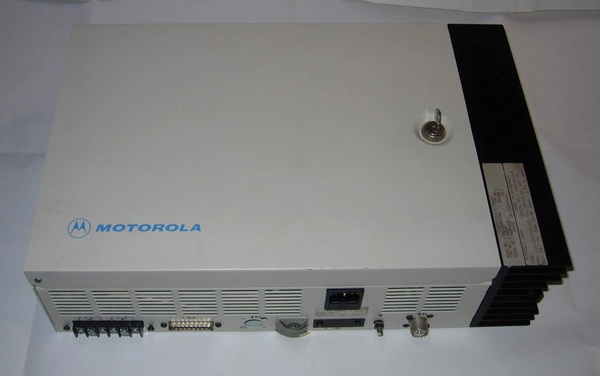

Motorola Base station, VHF Midband
66 - 88 MHz
4-wire remote control

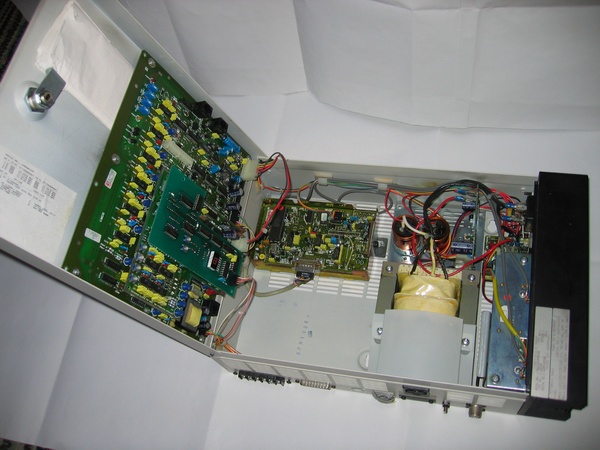

Motorola Base station
Inside

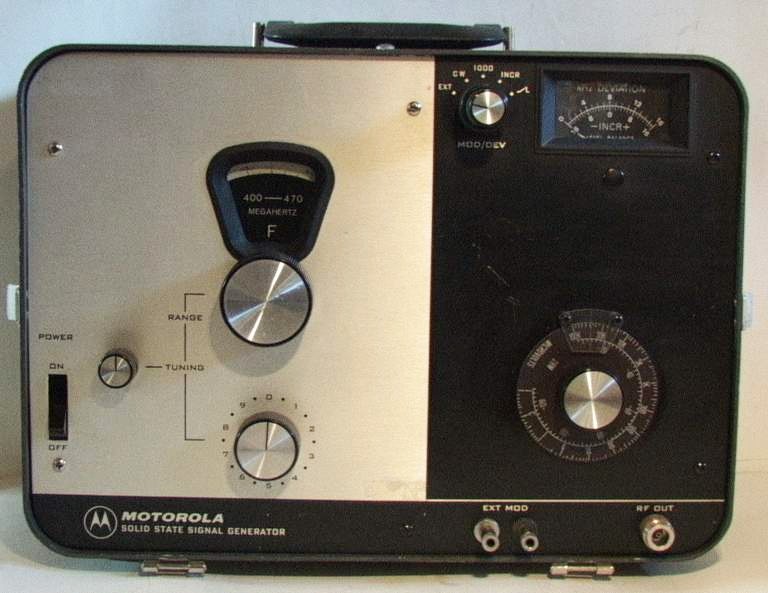

Motorola Solid State Signal Generator
Model S 1320-A
25 - 470 MHz

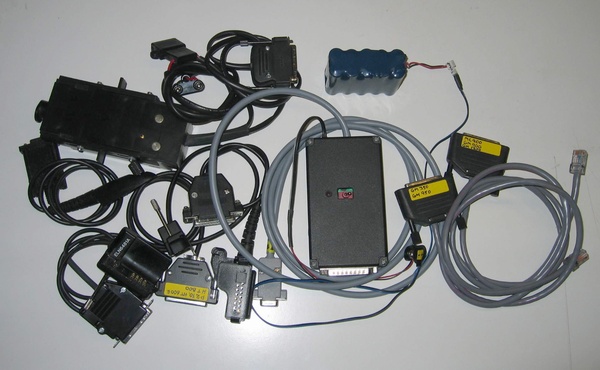

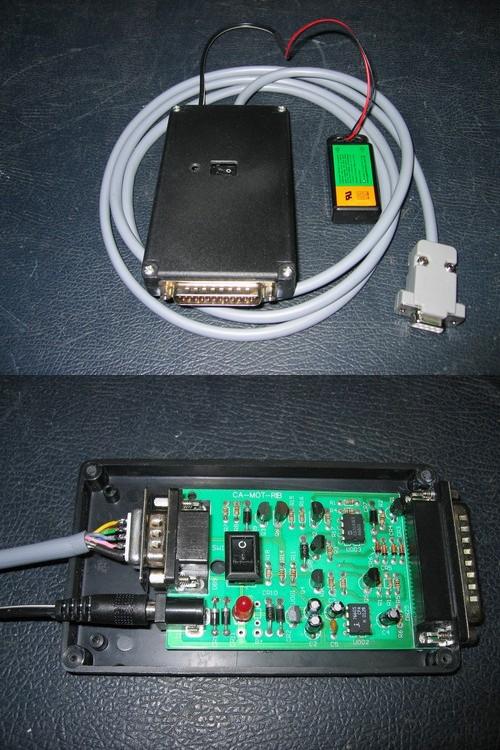

Radio Interface Box (RIB)
For Motorola radios








Programming adapters for
HT600, HT800, P210, MX3000, GP300, GP340, GP1200, MT2100
GM350, GM900, GM950, GM1200, MC900, MC2100








Computer for programming, Victor V286P
Motorola software requires a slow computer to run.








Discharger for Motorola HT600 batteries
Drains down to 8 Volts (1 Volt/cell)

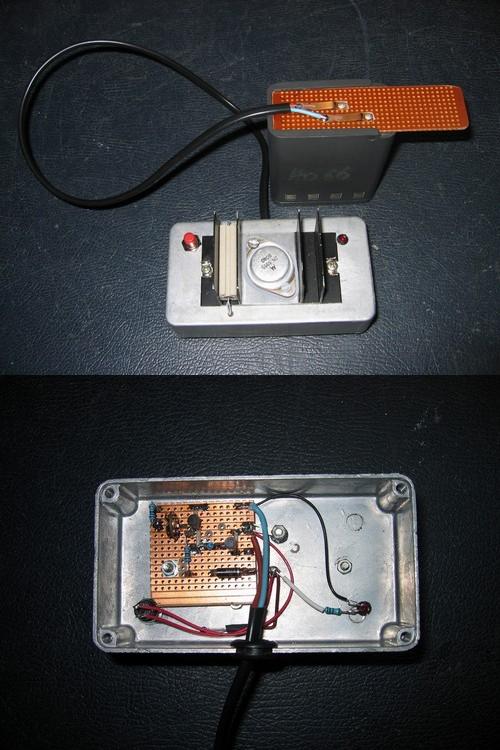

Discharger for Motorola GP300 batteries
Drains down to 6 Volt

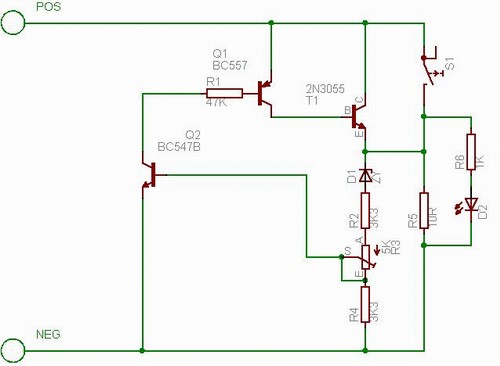

Discharger
Circuit diagram




2009
