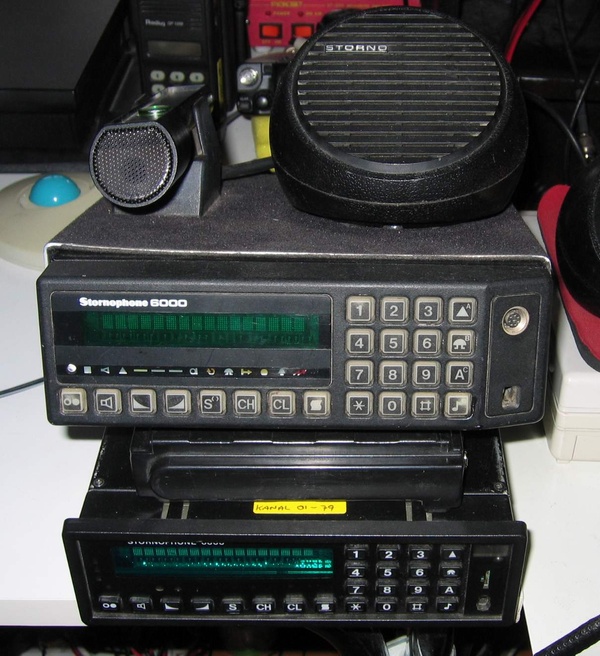

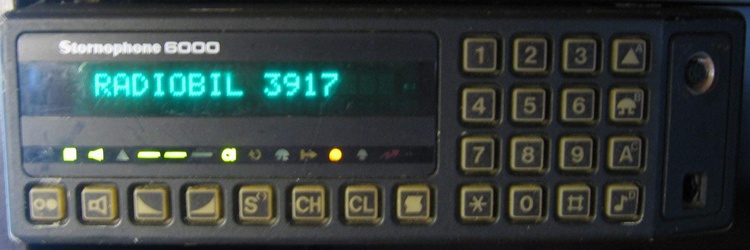

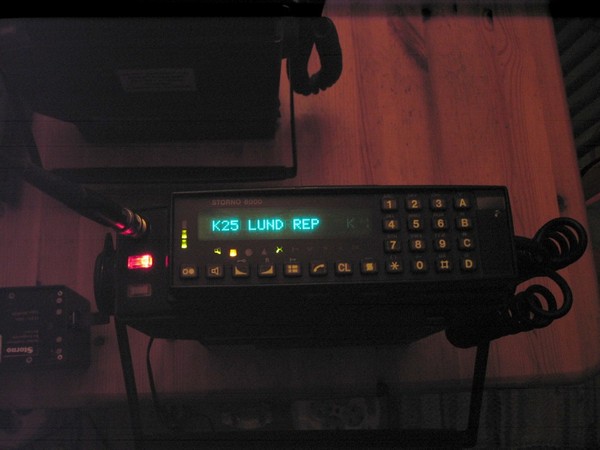

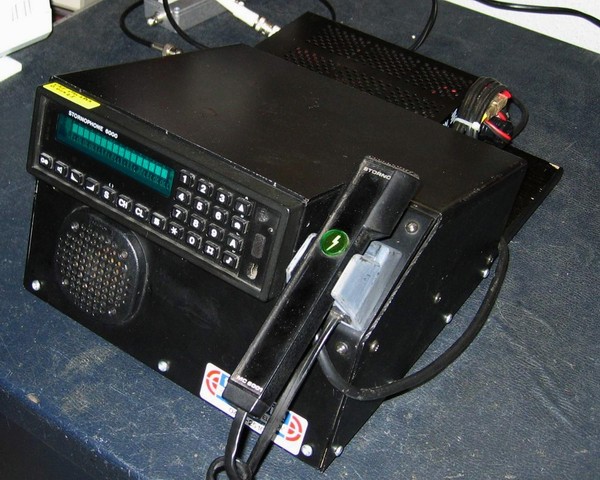

Stornophone 6000
VHF 136 - 174 MHz, programmed for 2 m Amateur band
VHF 66 - 88 MHz, programmed for S70, 78/79 MHz








Stornophone 6000
UHF 403 - 470 MHz
Programmed for S80 Police band and 70 cm Amateur band

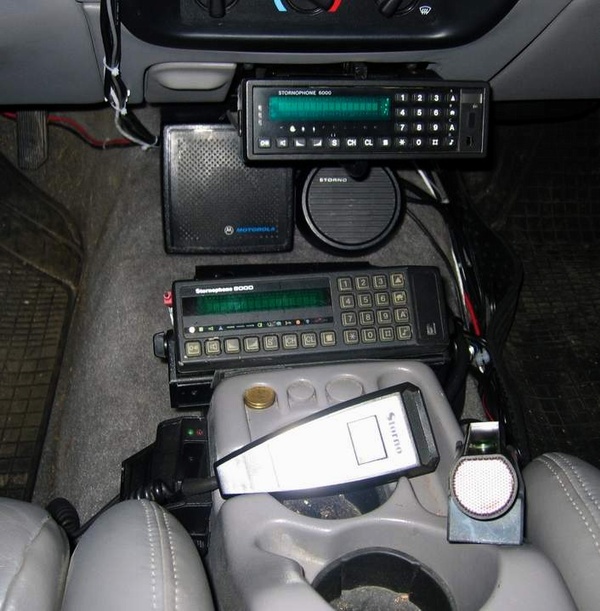

Stornophone 6000 with Remote panel
VHF 136 - 174 MHz, programmed for 2 m Amateur band
UHF 403 - 470 MHz, programmed for Police S80 and 70 cm amateur band








Stornophone 6000
UHF 403 - 470 MHz
Programmed for Police S80 and 70 cm amateur band

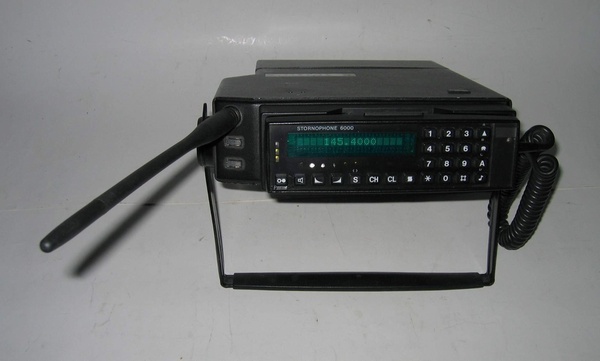

Stornophone 6000 portable
VHF 136 - 174 MHz, programmed for 2 m Amateur band









Stornophone 6000 portable
UHF 403 - 470 MHz, programmed for 70 cm Amateur band









Stornophone 6000 portable
UHF 403 - 470 MHz, programmed for 70 cm Amateur band
CTCSS Encoder installed

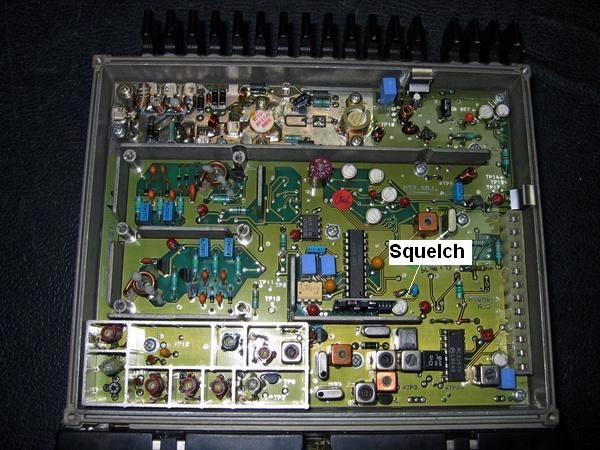

Stornophone 6000
RF Board

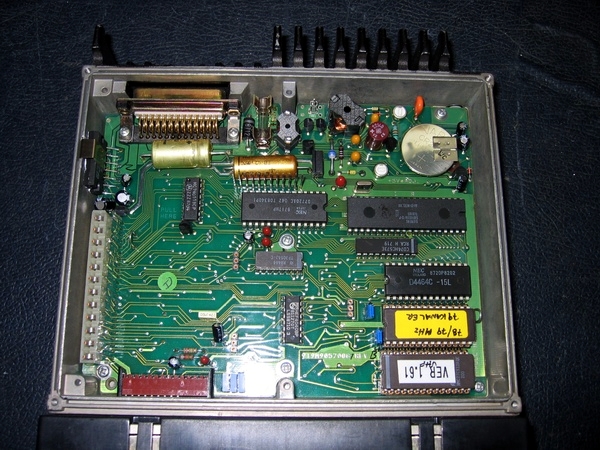

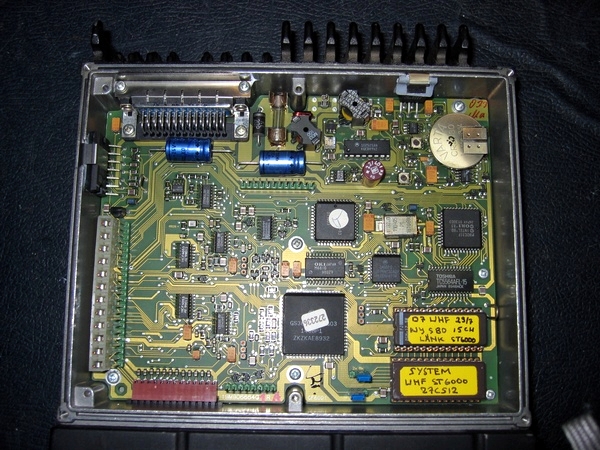

Stornophone 6000
Logic Control Board








Stornophone 6000
Logic Control Board
Newer version
This model was also sold by Motorola as the " Motorola SPECTRO"

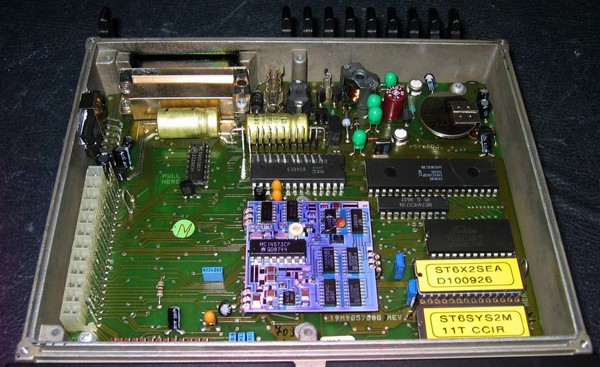

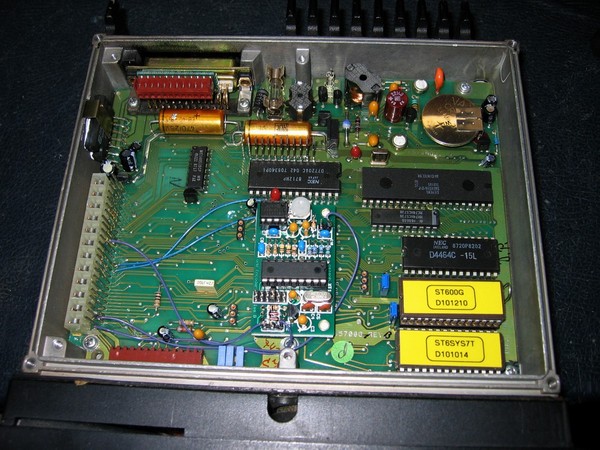

Stornophone 6000
Logic Control Board
Channel Guard CG6001 installed

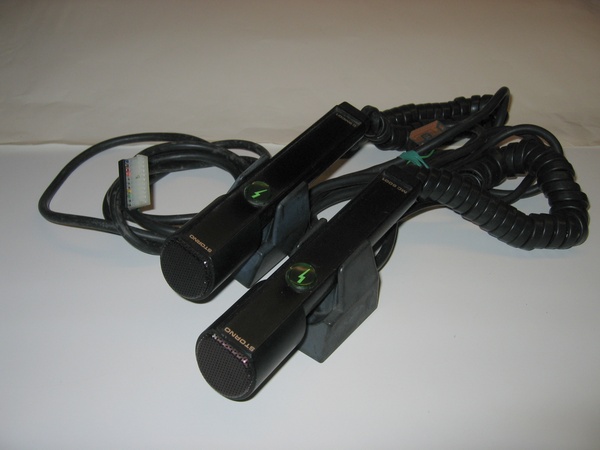

Stornophone 6000 microphones

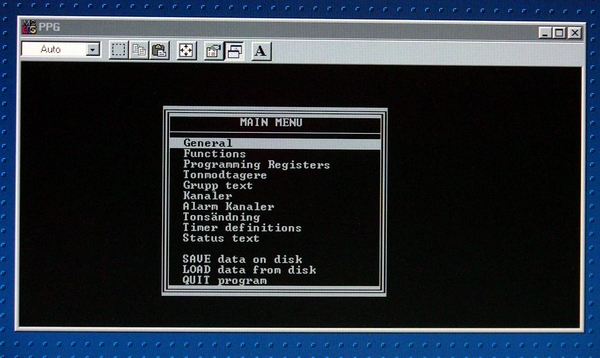

Stornophone 6000

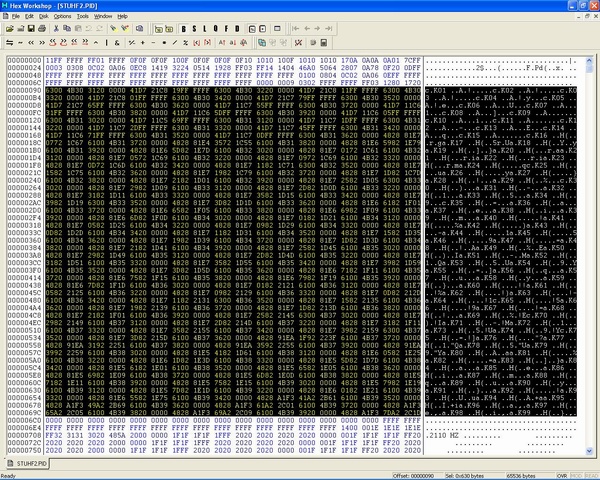

Åkeri programming software

Länk till programmering av Stornophone 6000,
Samma programmeringteknik som för Motorola Staccato,
förutom att Stornophone 6000 inte behöver trimmas.

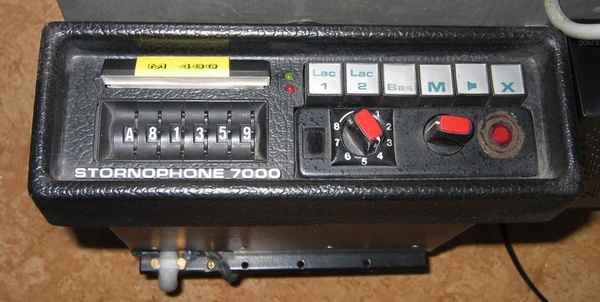

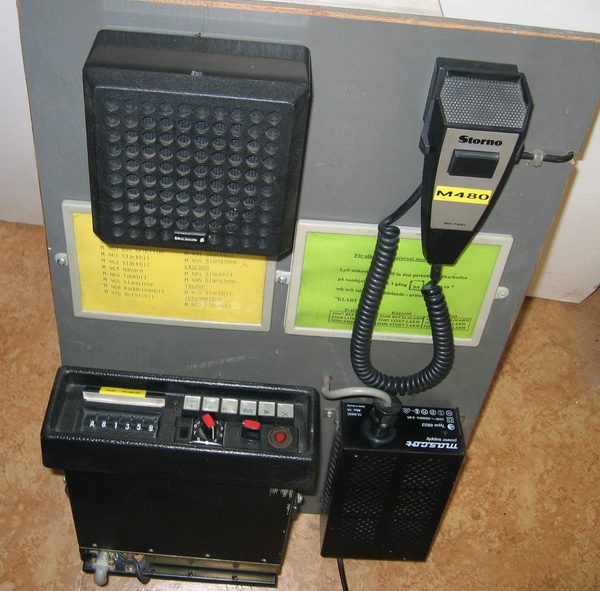

Stornophone 7000
78 MHz from a Fire Station








Stornophone 7000
78 MHz

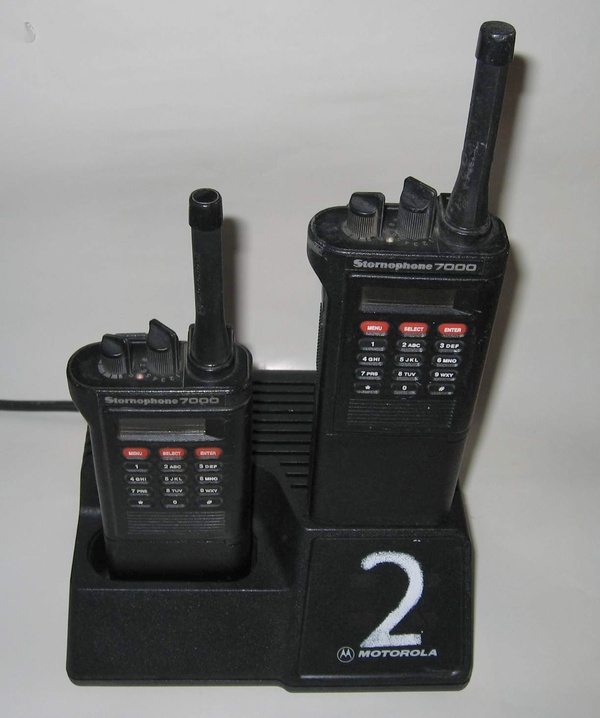

Stornophone 7000 Portable
UHF 432 - 470 MHz
Same as Motorola MX3000








Storno CQM 5552
UHF 378 - 408 MHz








Storno CQM 5332S
VHF 66 - 88 MHz








Storno CQM 5332S
VCO and Logic control board
Programmed by an Eprom








Storno CQP 632
VHF Midband

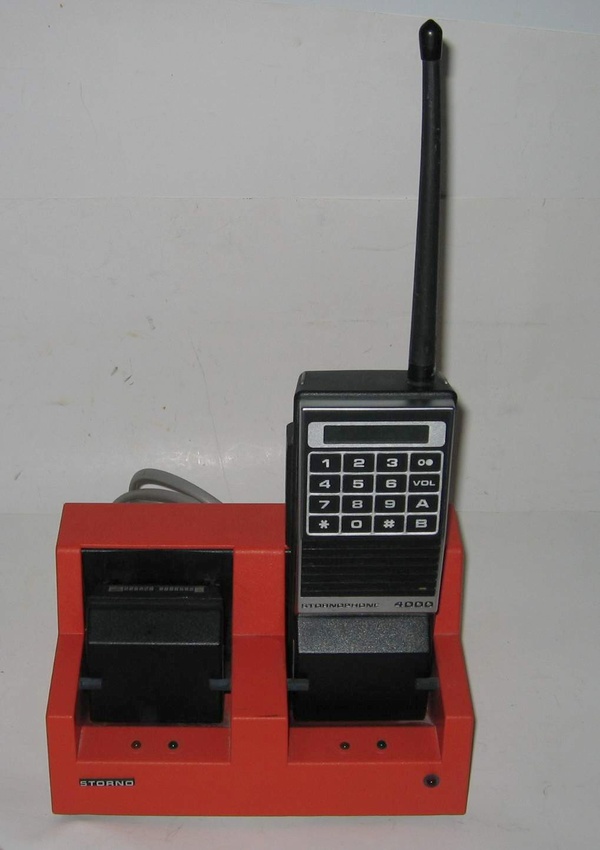

Stornophone 4000
UHF

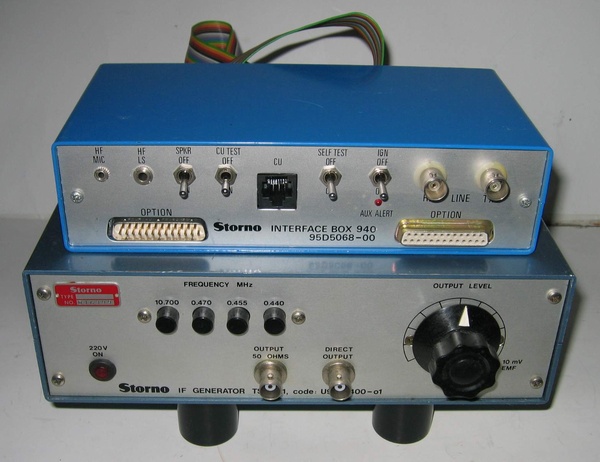

Storno Interface Box 940
Storno IF Generator TS-G21

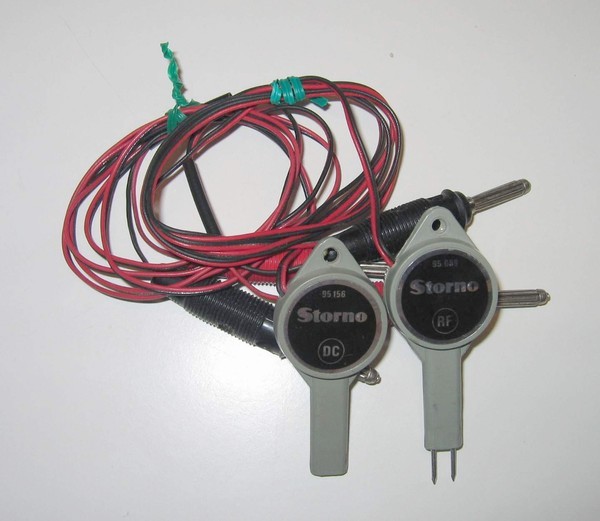

Service Probe
RF and DC

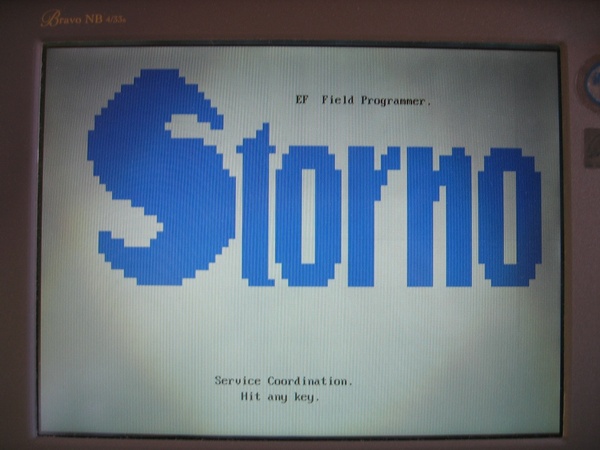

Storno EF Field Programmer
For Stornophone CQM 6000




2009
