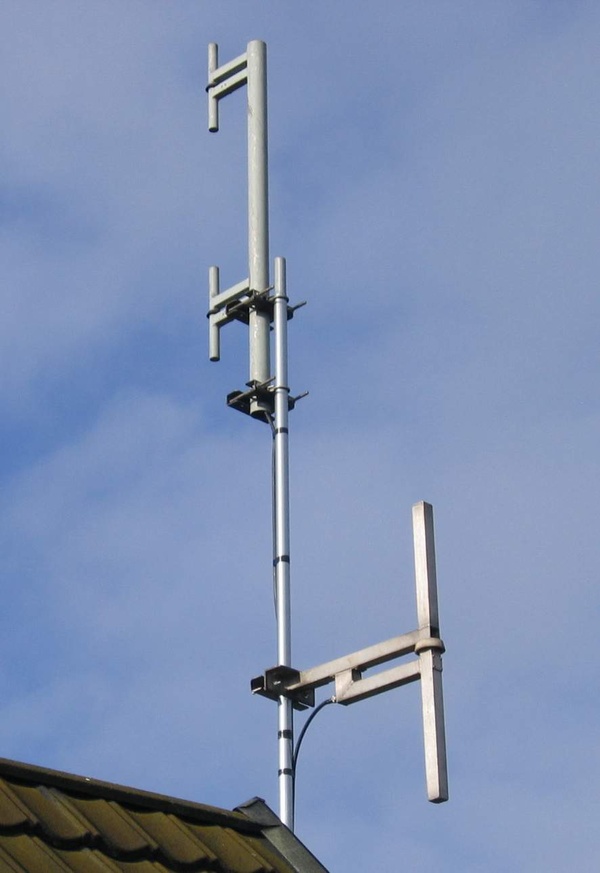

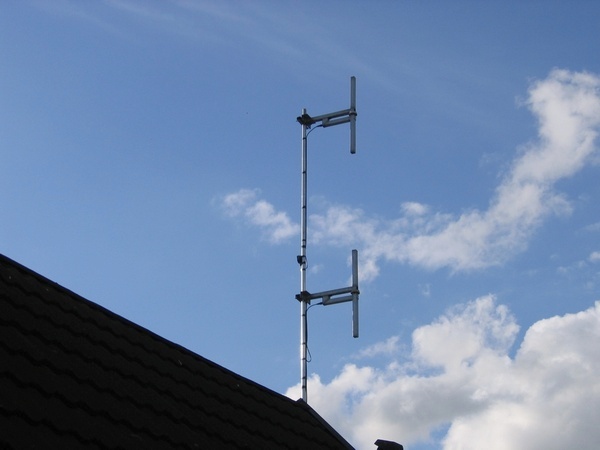

2x Aerial Oy AV1312-2, 144 - 174 MHz VHF








UHF








Procom CXL 70-8HD UHF and Aerial Oy AV1312-2 VHF

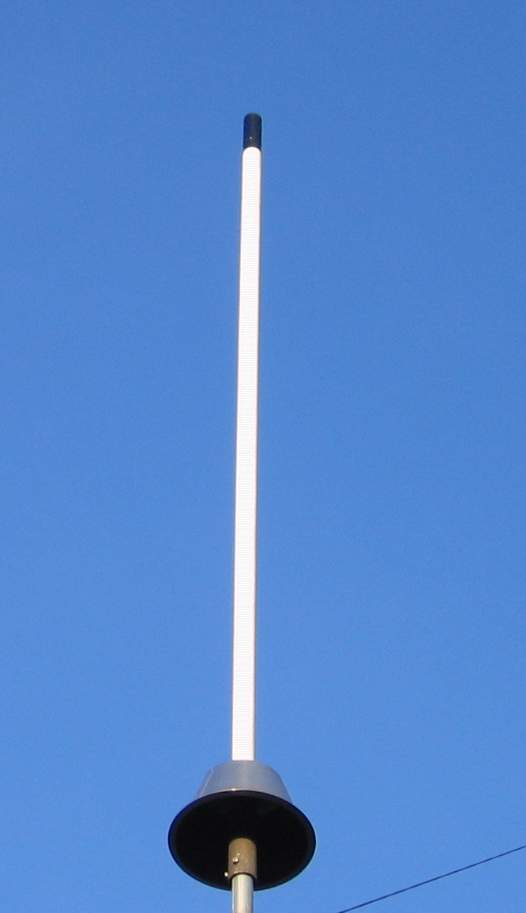

Allgon UHF 430 - 470 MHz








Military UHF








Aerial Oy AV1915-H UHF 350 - 470 MHz and AV1312-2 VHF 144 - 174 MHz

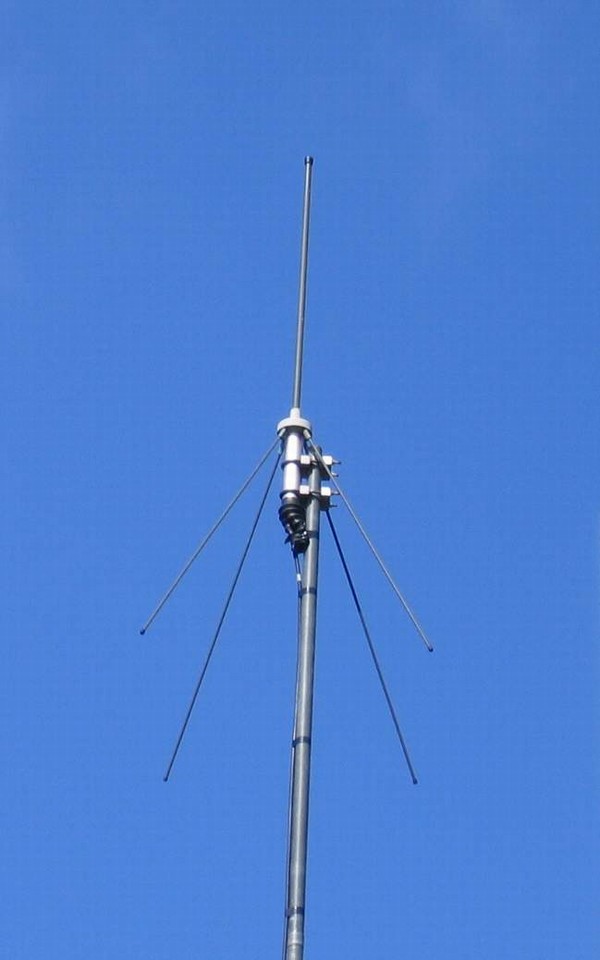

Diskcone VHF








Wideband antenna, 66 - 88 MHz
Civil defence








Comrod wideband antenna 66-88 MHz
Civil defence

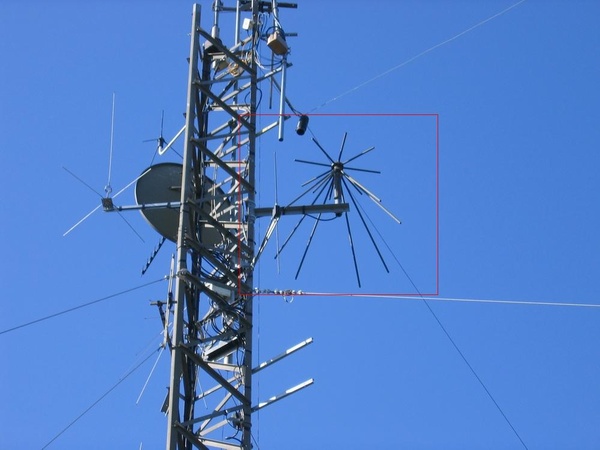

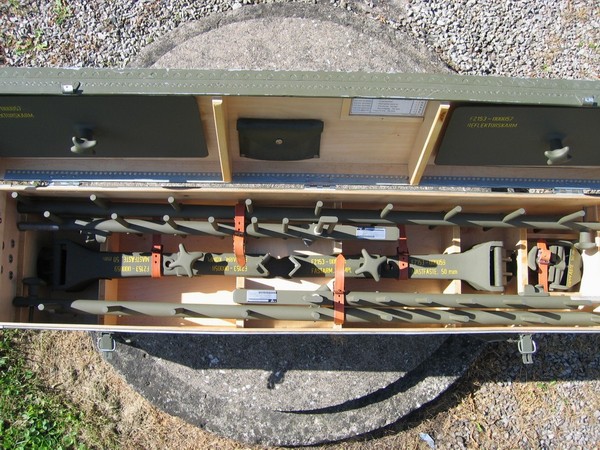

Military Diskcone Antenna 30 - 80 MHz








Coaxial Dipole
Coverage: 50 - 52 MHz
Rebuilt from a Procom VHF antenna

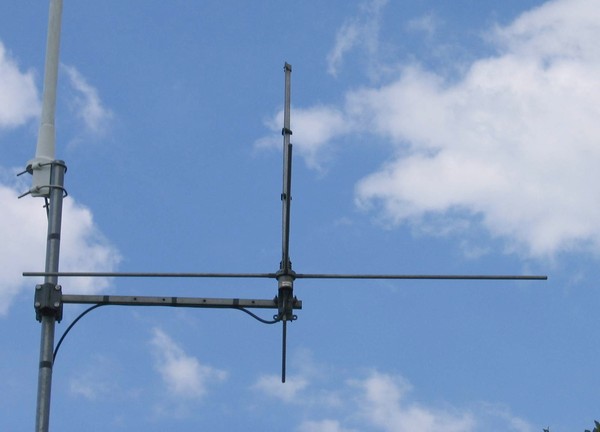

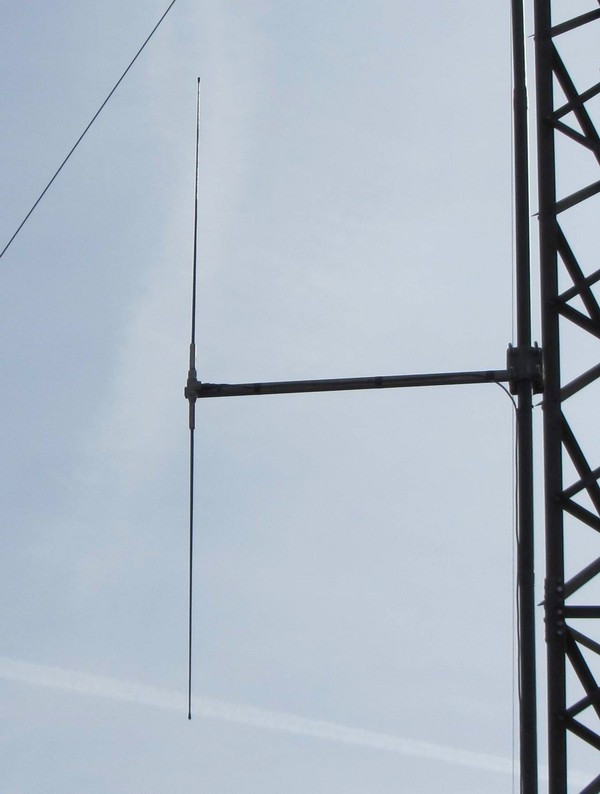

Coaxial Dipole
Coverage: 50 - 52 MHz, SWR < 1.5:1
Rebuilt from a Procom VHF antenna
 Choke Balun by 3 turns of the RG213 coax

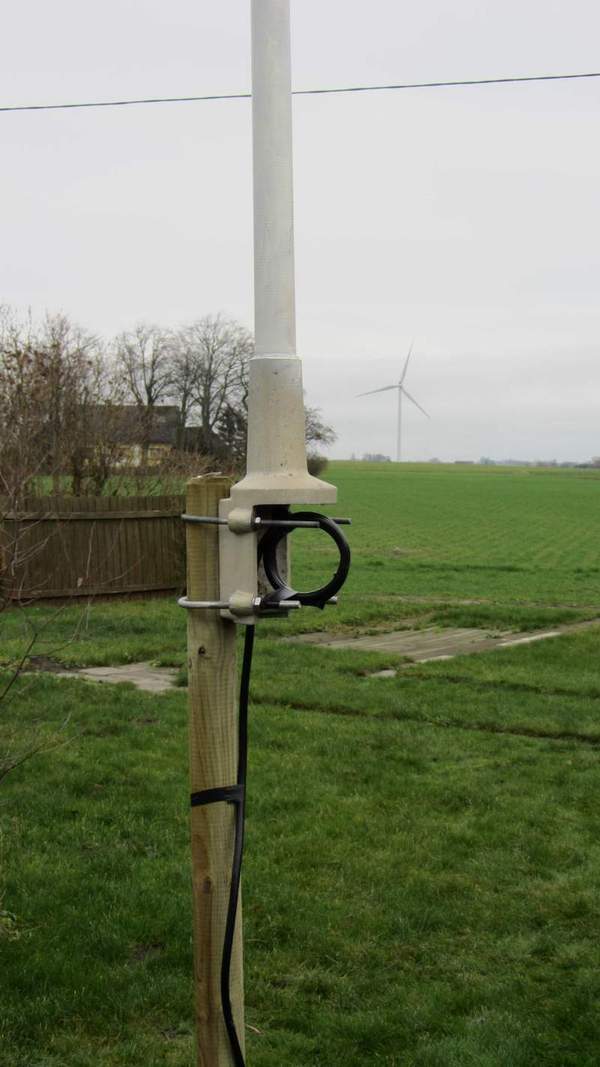

The mounting gap is made by a wood pole

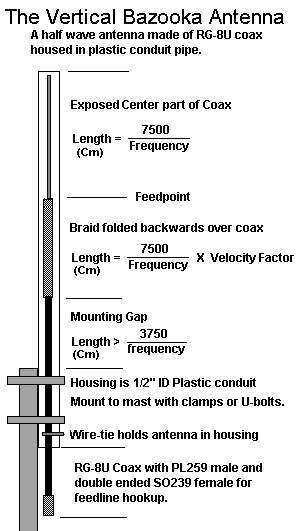

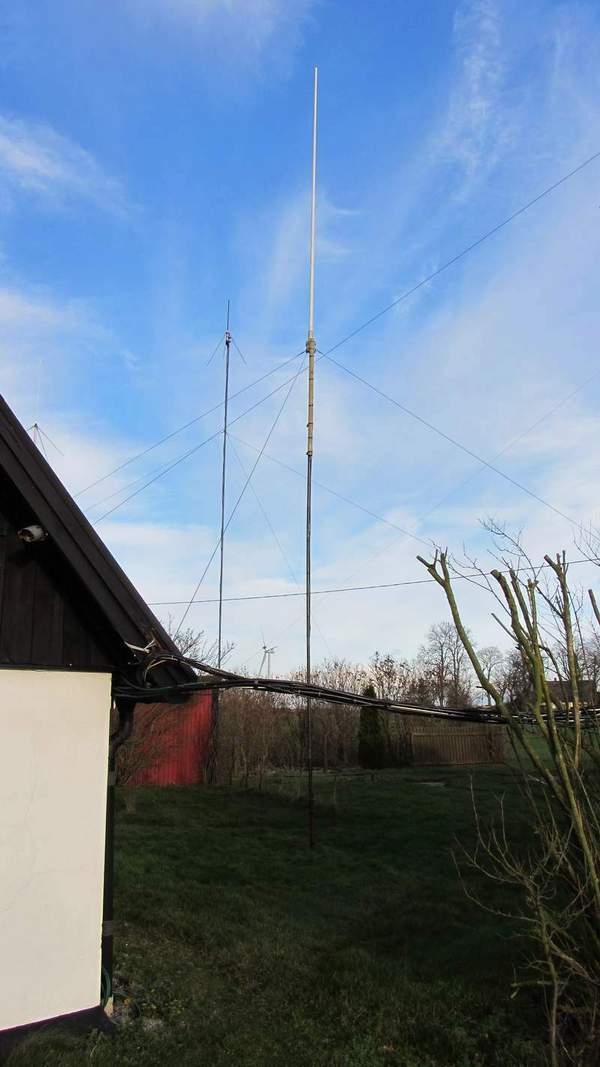

Coaxial Dipole
Length calculations

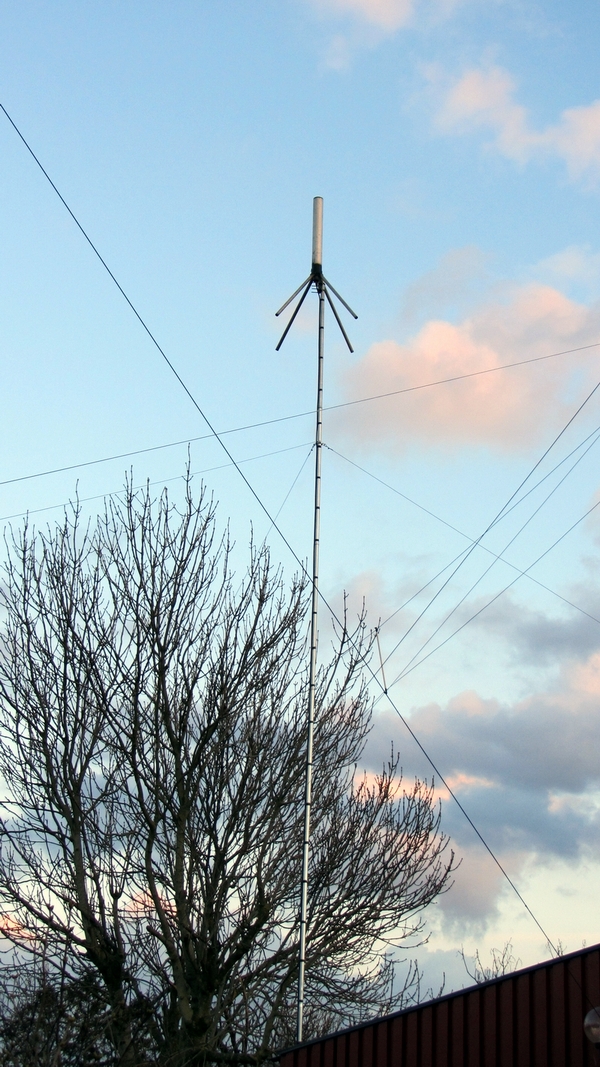

Allgon wideband antenna 68-88 MHz








Allgon wideband antenna 68-88 MHz

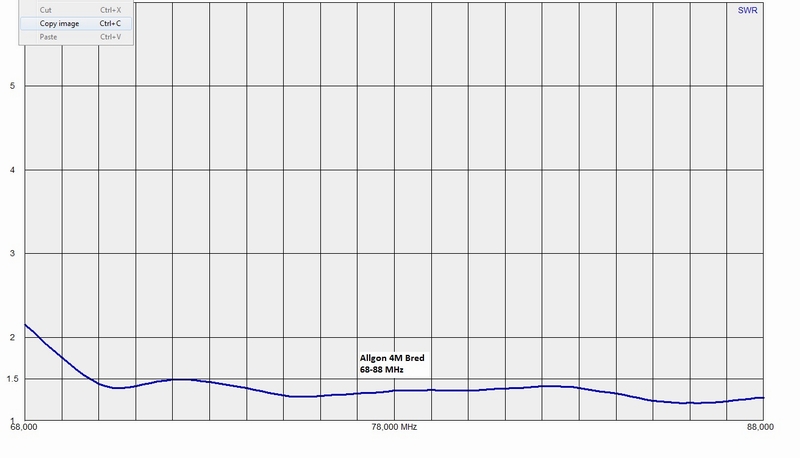

SWR Curve








Allgon GP Antenna 78/79 MHz







Allgon dipole antenna 70 MHz

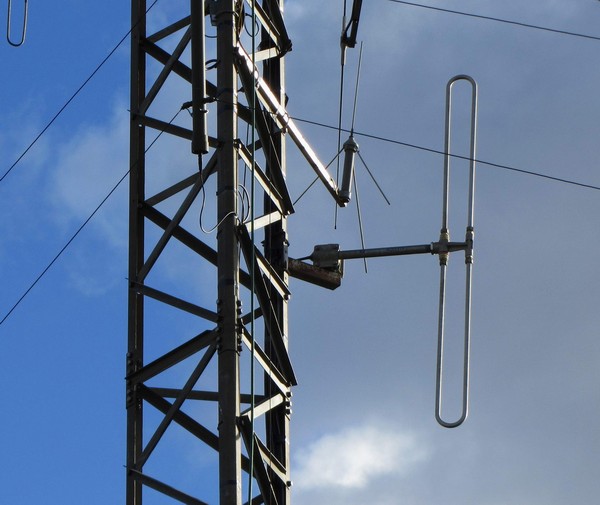

Allgon folded dipole antenna 85 MHz

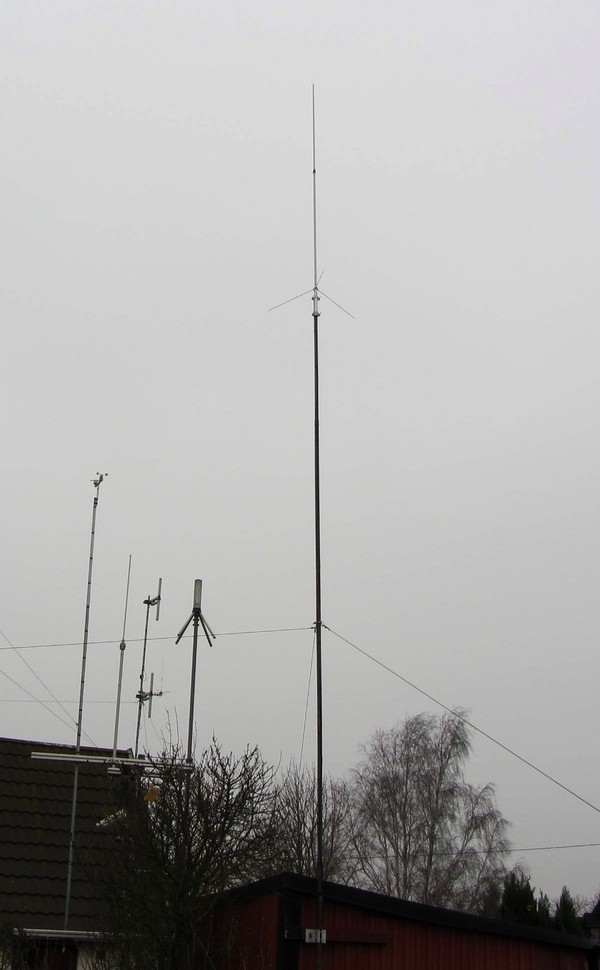

Diamond X300, 145/434 MHz








Wideband Shortwave antenna

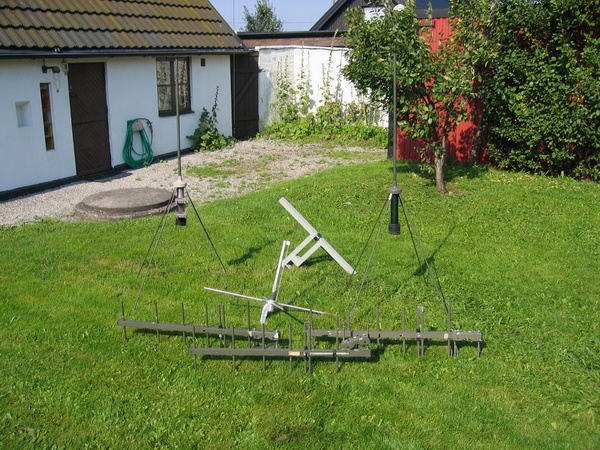

Misc. antennas

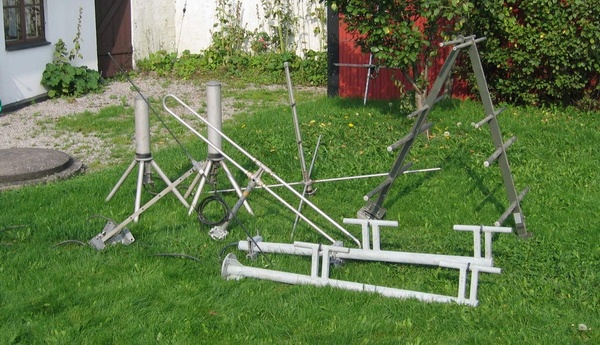

Misc. antennas

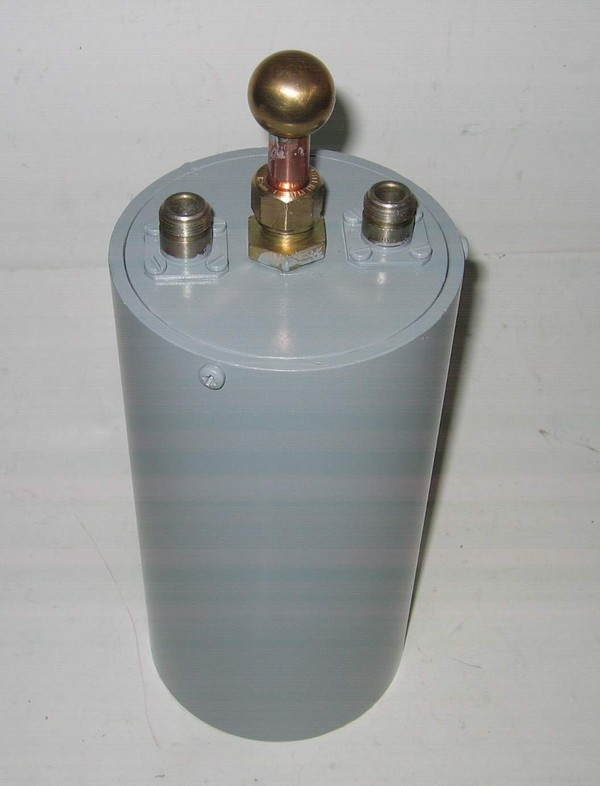

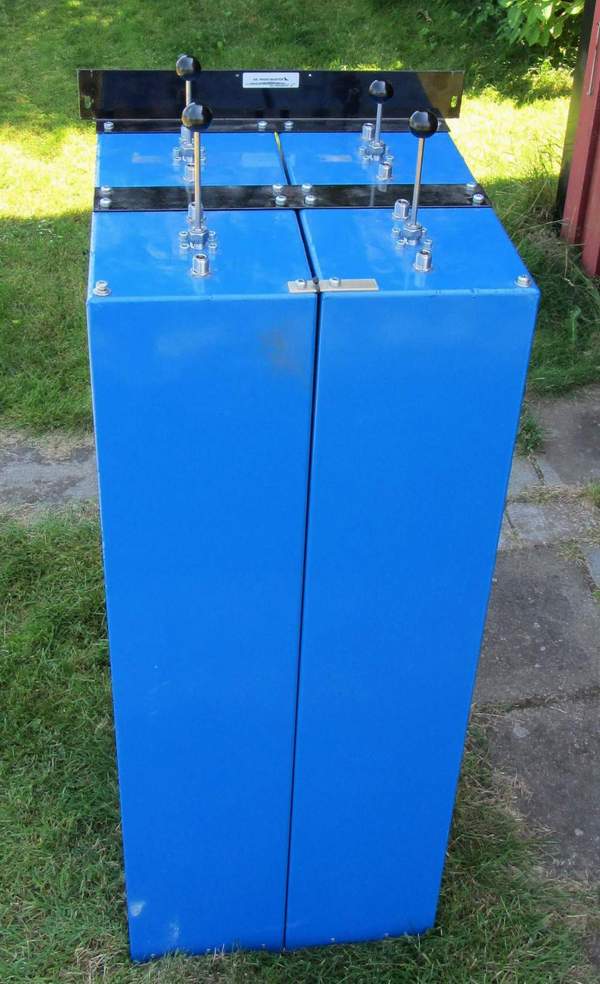

Bandpass-filter  4 Meter
Adjustable for 66-88 MHz








Bandpass filter  UHF
Adjustable for 430 - 470 MHz
-10 dB @ + - 2 MHz

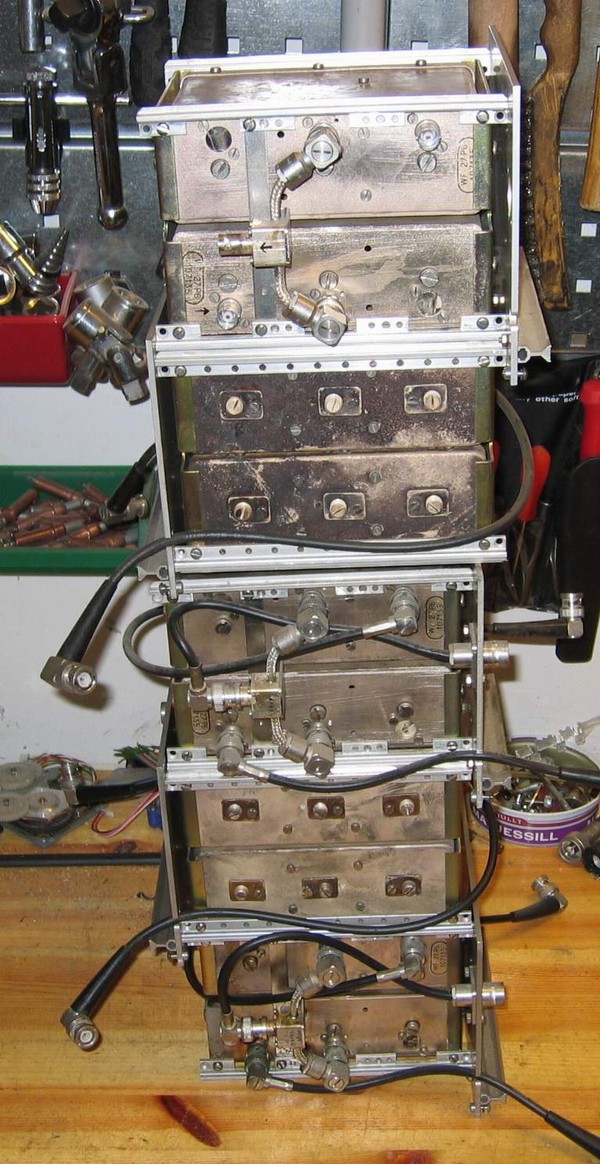

Autophon Duplex Filters UHF
Adjustable for 430 - 470 MHz

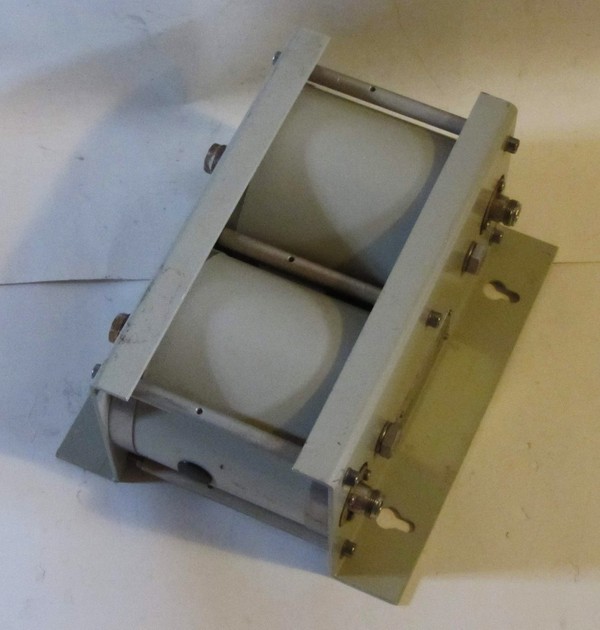

Bandpass filter 66 - 88 MHz
The shorter filters are rebuilt for 145 MHz

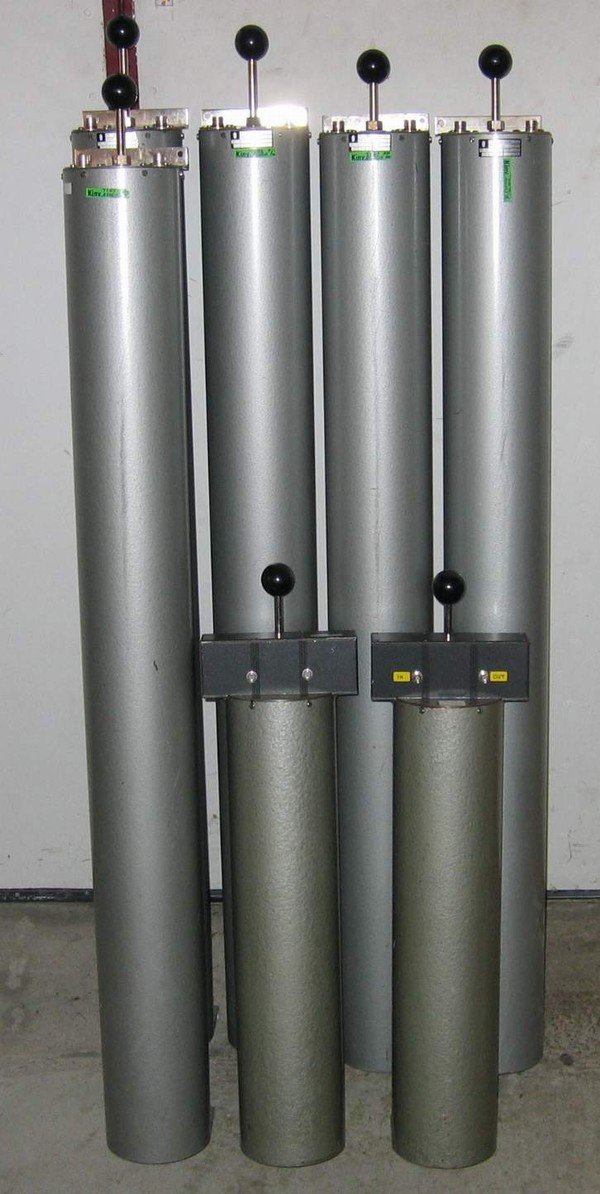

Duplex filters 432/434 MHz

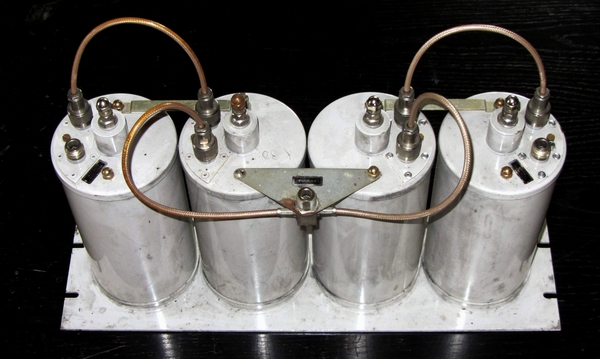

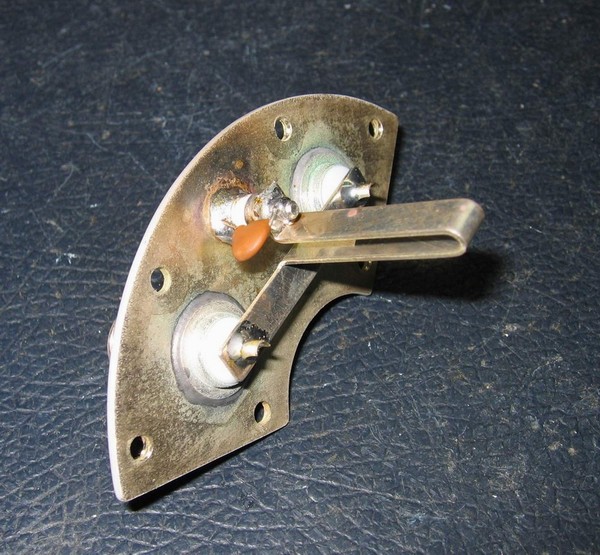

BpBr Wacom 678-R2
Mod. for 2 MHz offset
Typical performance: 1.0 dBm loss and < -80 dBm notch








Duplex filters 434 MHz
Left: Wacom Bandpass/Bandreject, rebuilt for 2 MHz
Right: BpBr, Rebuilt from 4 meter Bandpass Filters,
Insertion loss: 1.0 dBm

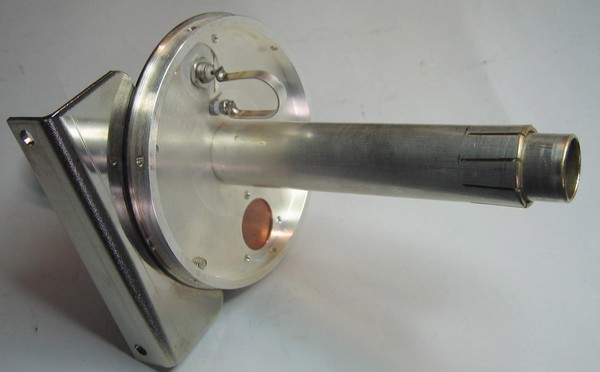

BpBr Filter 434 MHz
Rebuilt from 4 meter Bandpass Filter

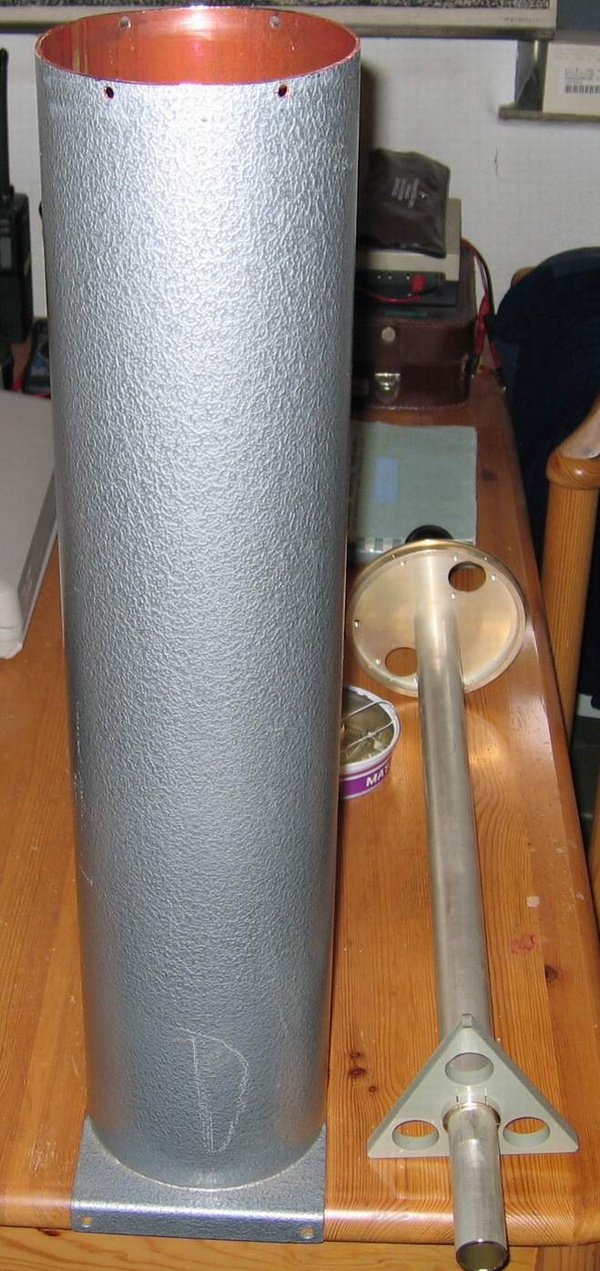

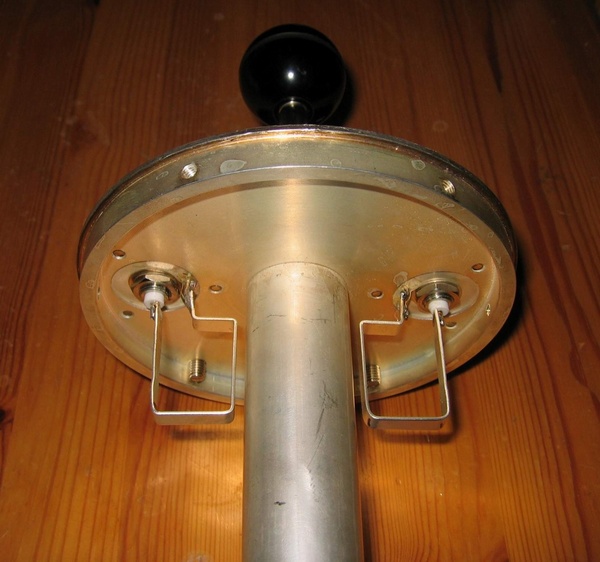

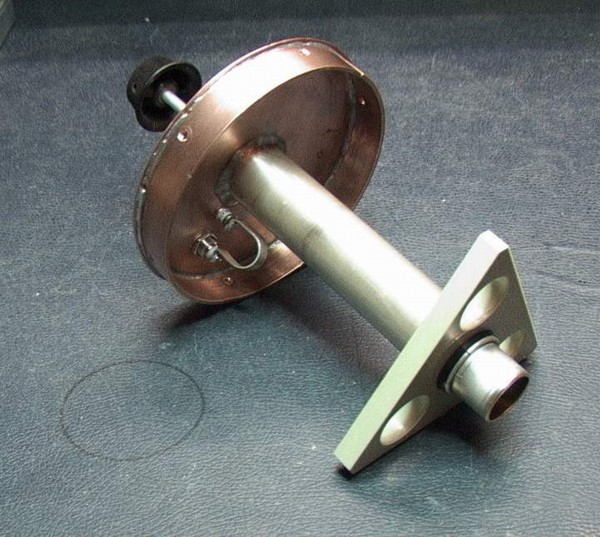

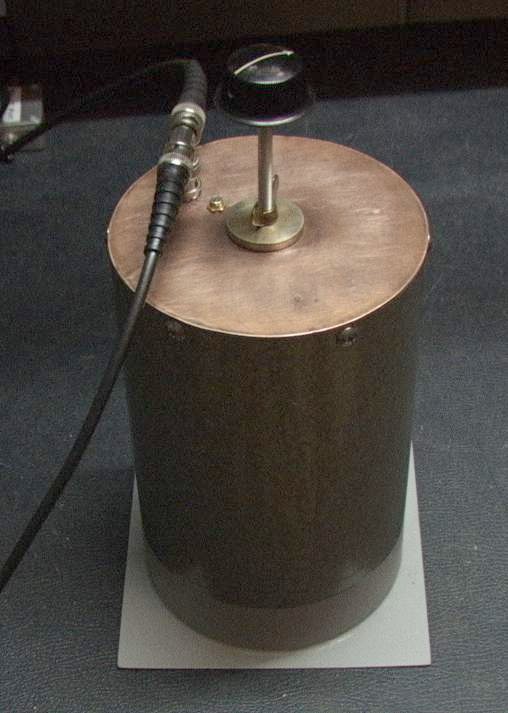

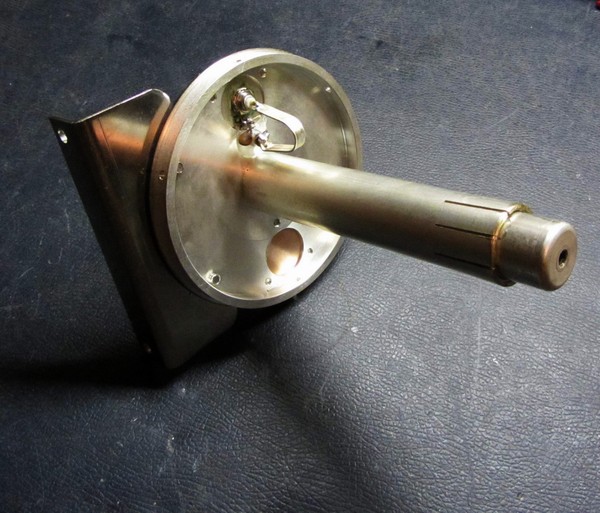

Coupling loop and adjustable piston Capacitor








BpBr Filter 434 MHz
-30 dB Notch @ - 2 MHz








BpBr Filter 434 MHz
Homebuilt








BpBr Filter 434 MHz
Homebuilt

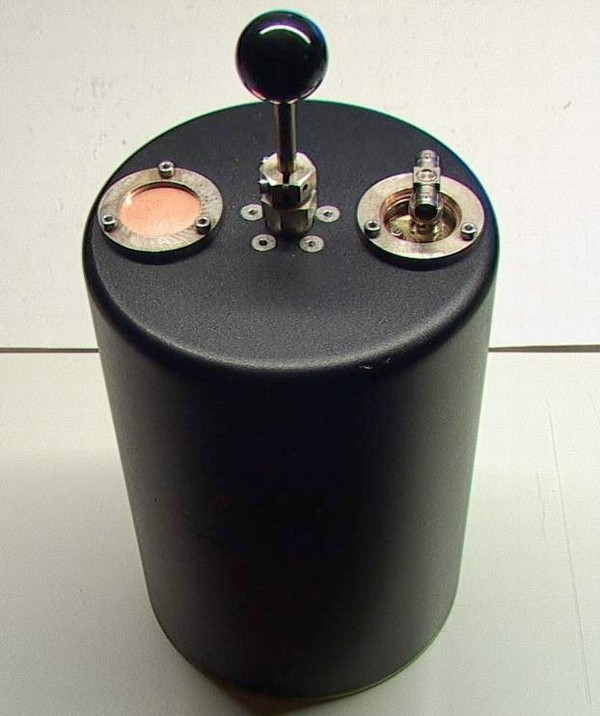

Bandpass Filter CFB 1045
400  - 470 MHz

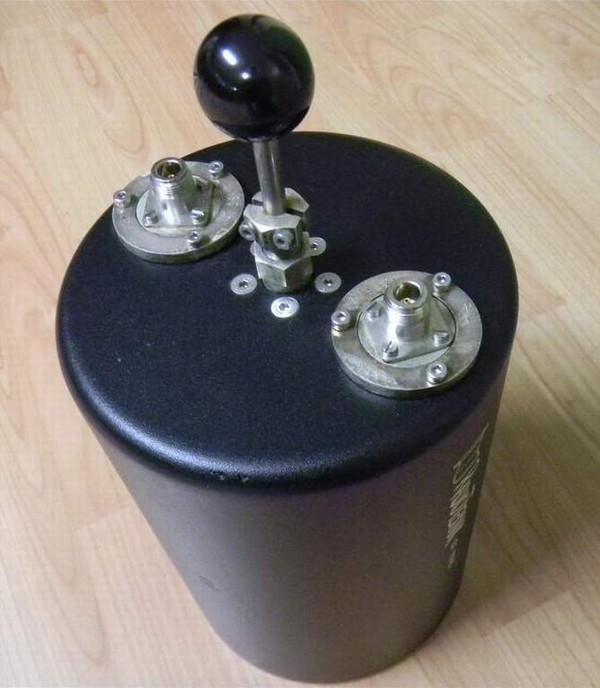

Bandpass Filter CFB 1045
Mod for BpBr 434 MHz








Bandpass Filter CFB 1045

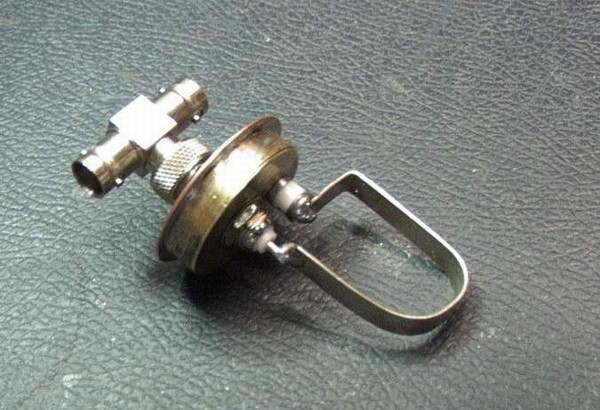

Coupling Loop for BpBr 434 MHz







Bandpass Filter Kathrein, Type K 651221
420 - 470 MHz







Bandpass Filter Kathrein, Type K 651221
Center freq: 434 MHz

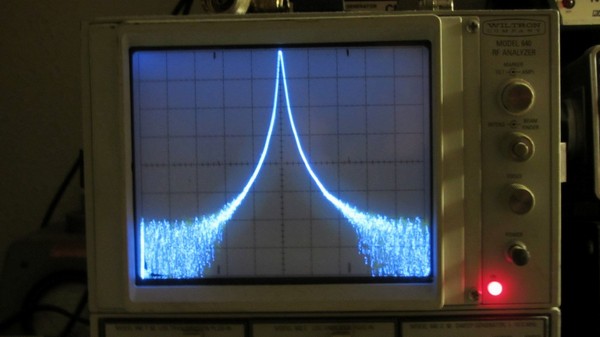

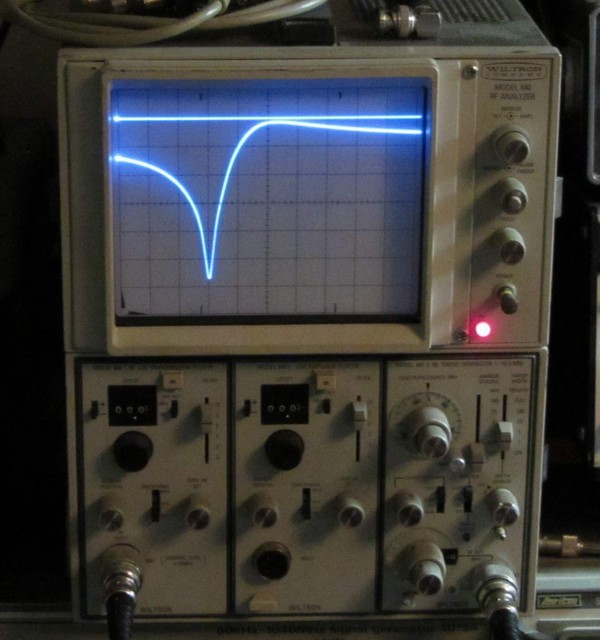

Hor: 5 MHz/div, Vert: 10dB/div

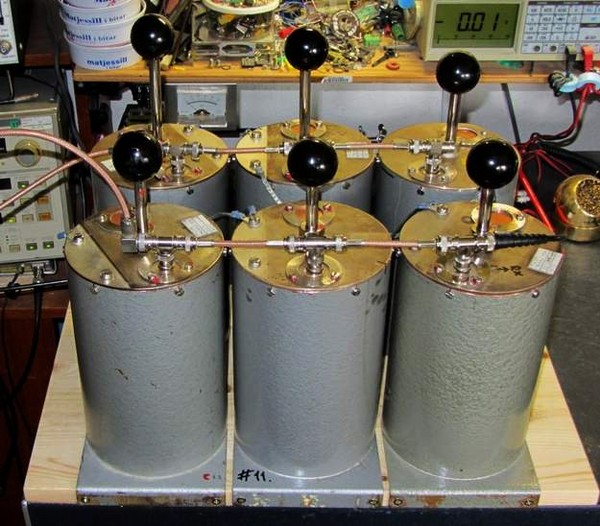

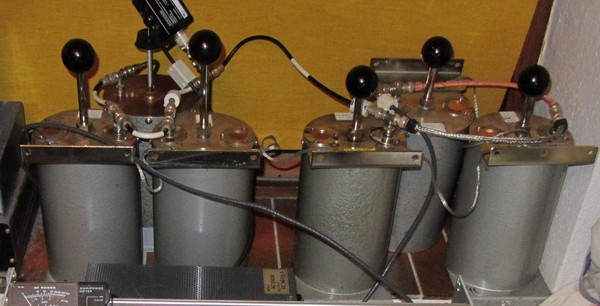

Filter setup for 434 MHz Repeater
Three filters on TX side and three filters on RX side
Single antenna








Bandpass filter 145 MHz
Rebuilt from a 66-88 MHz filter








Bandpass filter 145 MHz
Coupling Loops








Bandpass filter 145 MHz

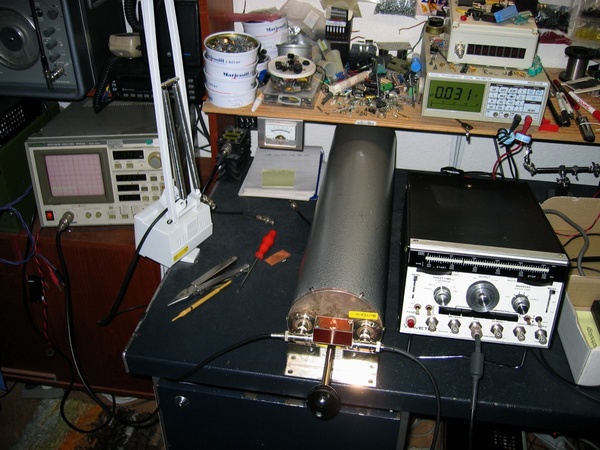

Adjusting a filter with Sweep Generator and Spectrum Analyzer
