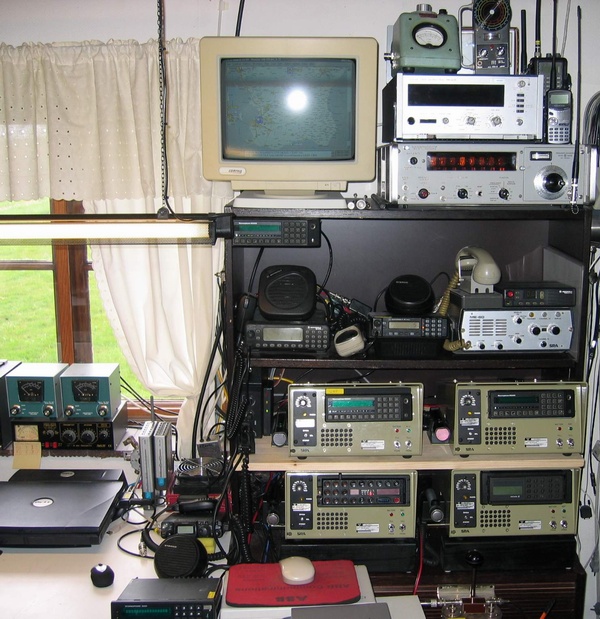

This is my radio room







Some of my commercial radio's for amateur radio.
 SRA/Ericsson, Motorola and Stornophone .






Spare radio's
 Motorola and Stornophone
VHF Midband, VHF High and UHF

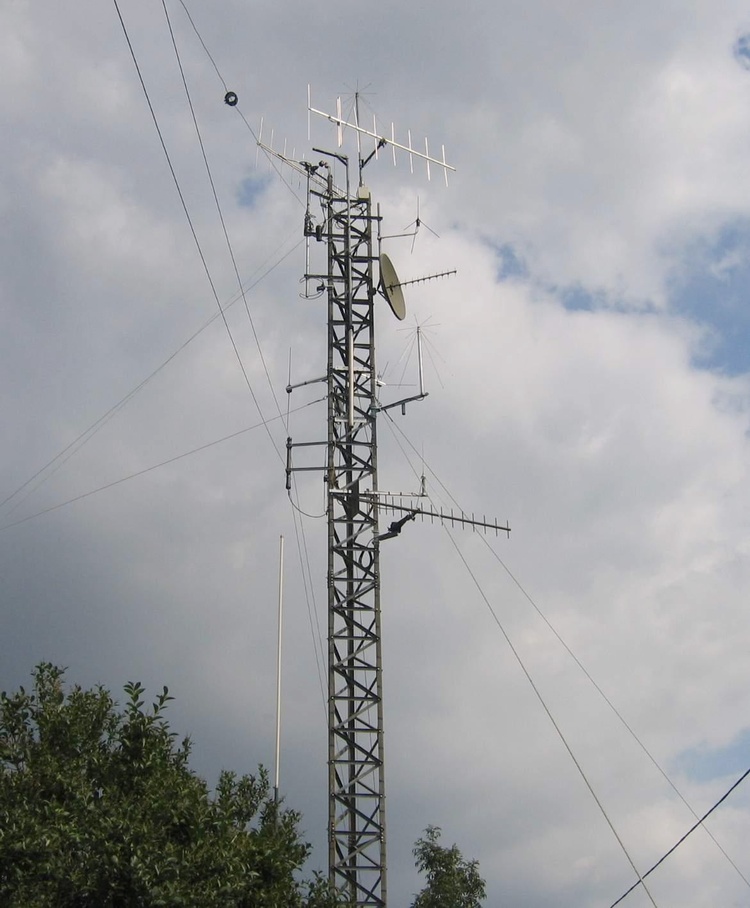

Antenna farm

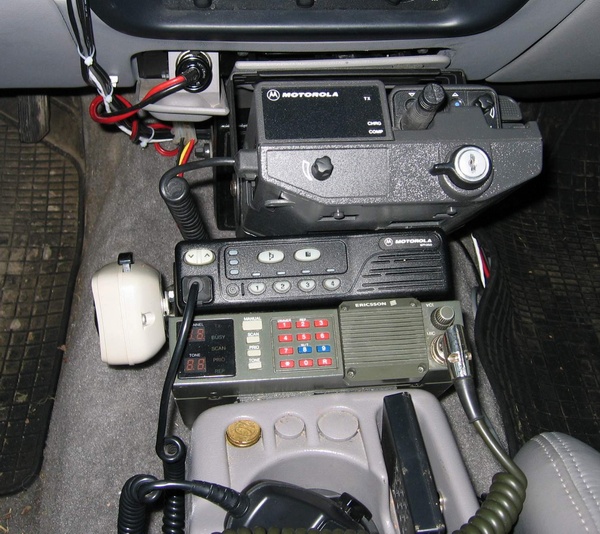

Ericsson C64 for VHF and Motorola GM350 for UHF and a Convertacom for portable VHF or UHF.

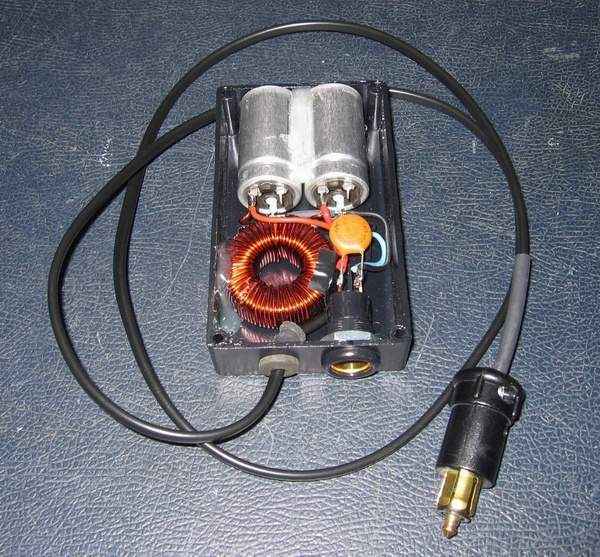

Alternator filter
This filter is used when the Alternator is whining through the radio

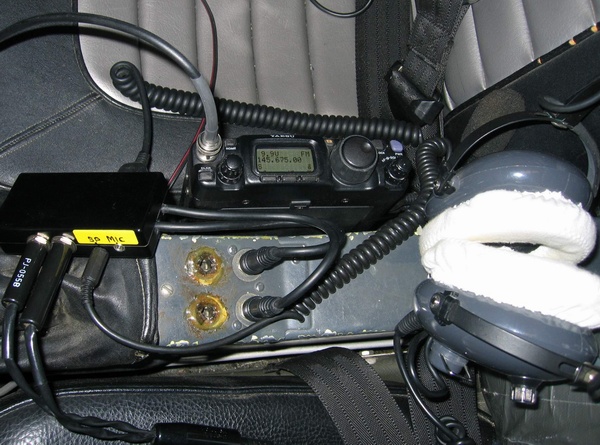

Radio in my airplane:
Yaesu FT-817 with a patchbox for the airplane intercom system.

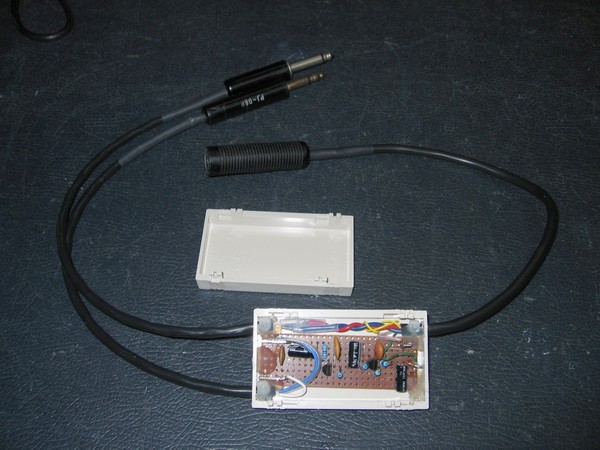

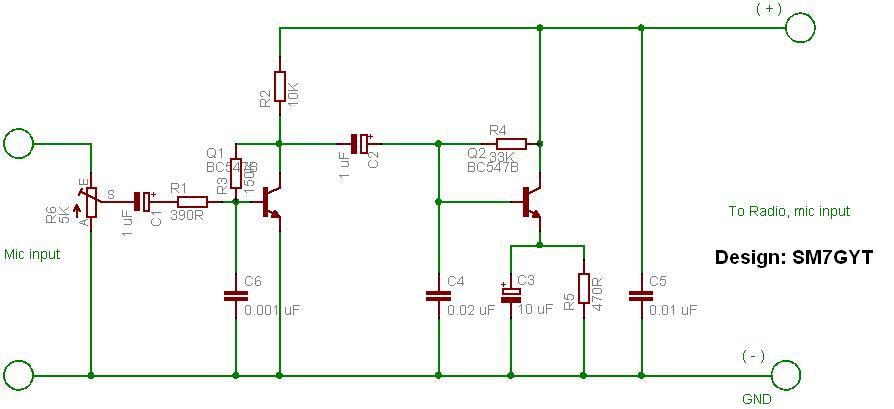

Headset adapter
Converts from 5 Ohms military helmet or headset microphone
to civil aircraft radio standard








Headset adapter
Circuit diagram

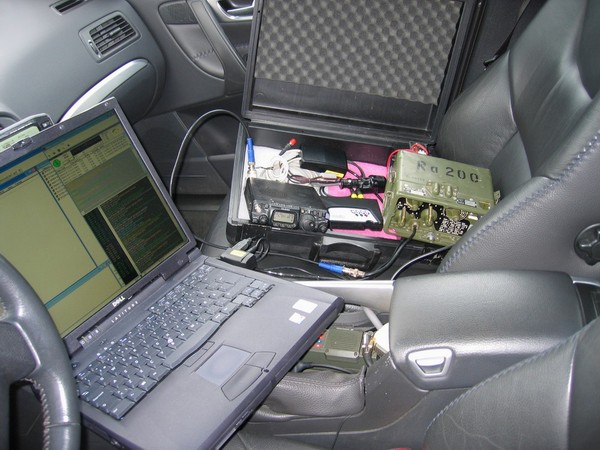

PC-Dart/SWALE
Military radio E-Mail System, used by the Swedish National Home Guard
Running a test on 4.3530 MHz from my car.
YAESU FT-817 with 5 Watts, and a military antenna tuner





PC-Dart/SWALE

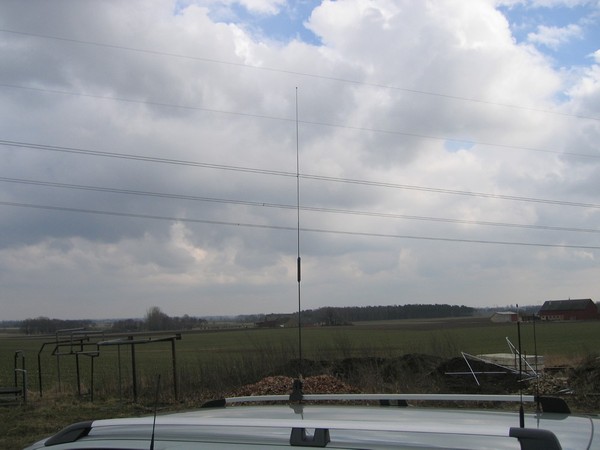

Mobile antenna for shortwave

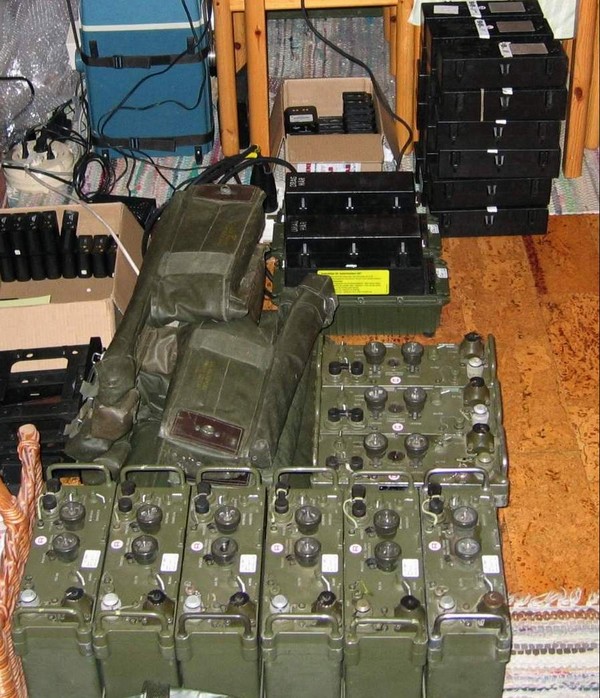

RA 145
Military radio 30.0 - 75.95 MHz
Used by the Swedish National Home Guard




RA 145
Military radio 30.0 - 75.95 MHz
Used by the Swedish National Home Guard

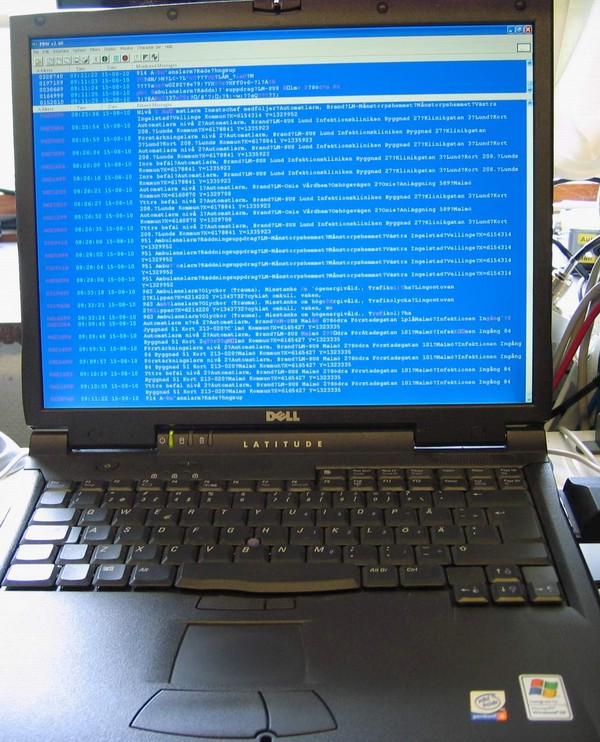

POCSAG
Ambulance and Fire Department alarm pagers on UHF 449.275 MHz
Monitored by an Ericsson C65, and decoded by PDW software




POCSAG
Ambulance and Fire Department alarm pagers on UHF 449.275 MHz
Coverage with 100% decoding from Kävlinge

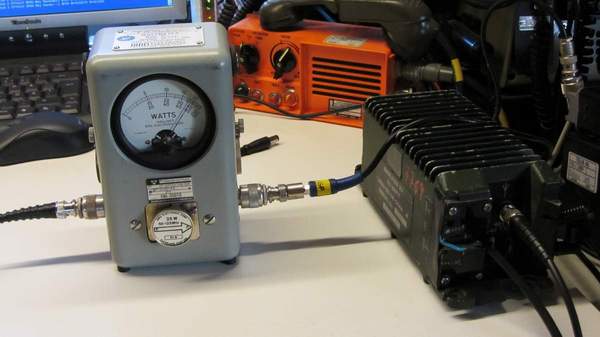

Clansman 20 Watt military Power Amplifier
Coverage 30 - 76 MHz
Input 4.5 Watt, output 20 Watt
Supply power: 24 VDC

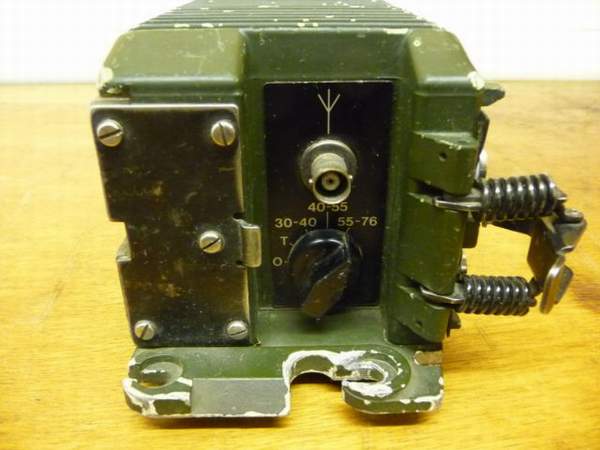

Clansman 20 Watt military Power Amplifier
Coverage 30 - 76 MHz, selector for 30-40, 40-55 and 55-76 MHz
Input 4.5 Watt, output 20 Watt
Supply power: 24 VDC

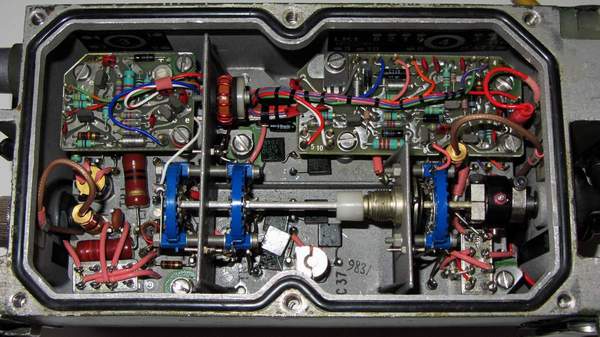

Clansman 20 Watt military Power Amplifier
Coverage 30 - 76 MHz
Input 4.5 Watt, output 20 Watt
Supply power: 24 VDC

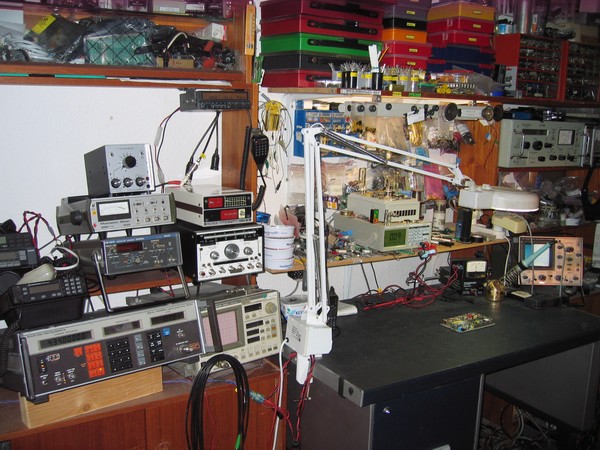

This is my Radio Lab



Marconi Signal generator 2019A, 80 kHz - 1040 MHz




Marconi Radio Communications Test Set 2955,  400 kHz - 1000 MHz

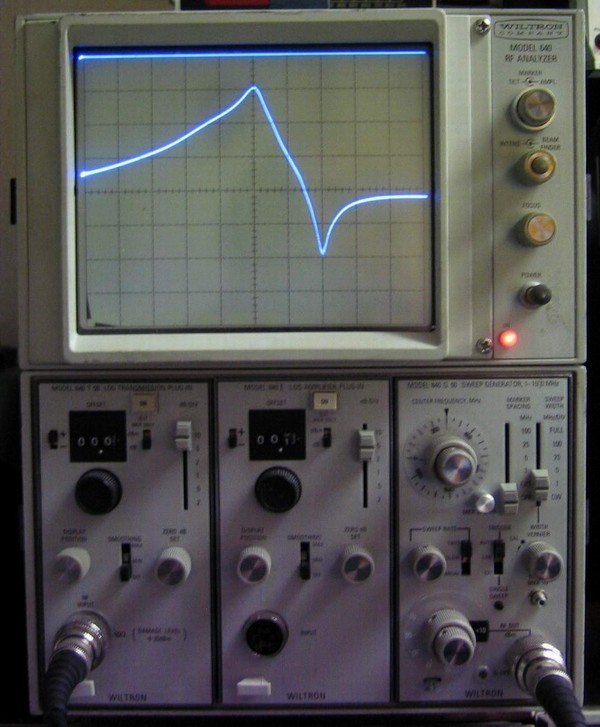

Wiltron RF Network Analyzer Model 640
With Model 640 G50 Sweep Generator 1 - 1500 MHz

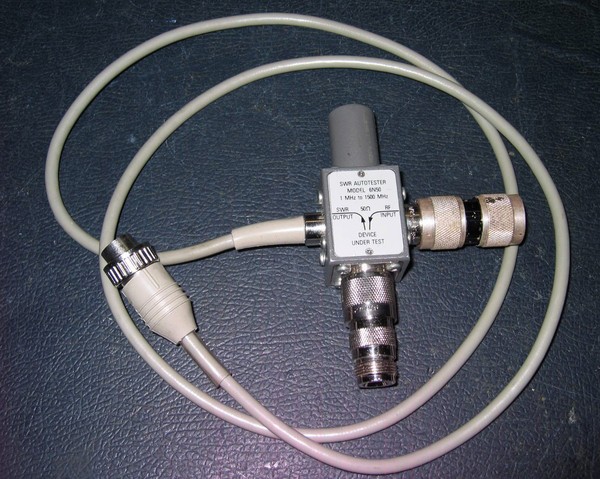

Wiltron RF SWR Autotester Model 6N50
1 - 1500 MHz, 50 Ohms





Wiltron RF SWR Autotester Model 6N50
1 - 1500 MHz, 50 Ohms
Analyzing a Duoband antenna for 145/434 MHz

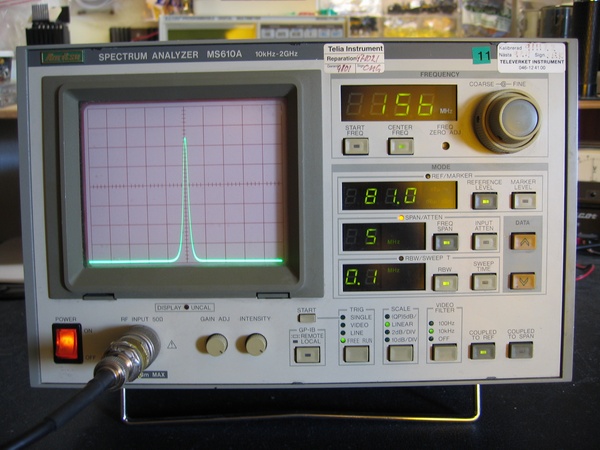

Anritsu Spectrum Analyzer MS610A
10 KHz - 2 GHz

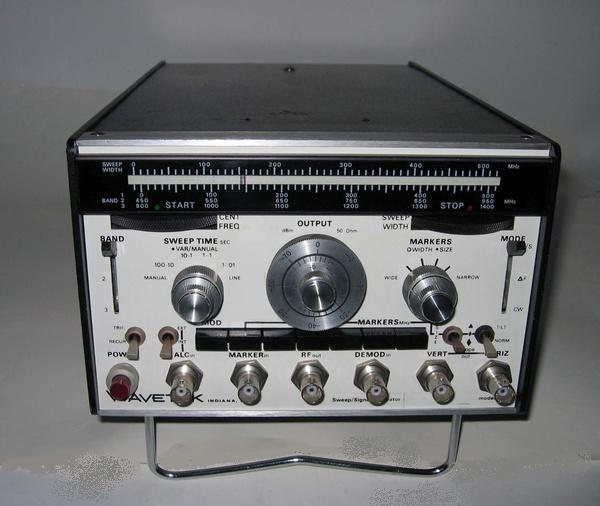

Wavetek Sweep generator Model 2001
1 - 1400 MHz

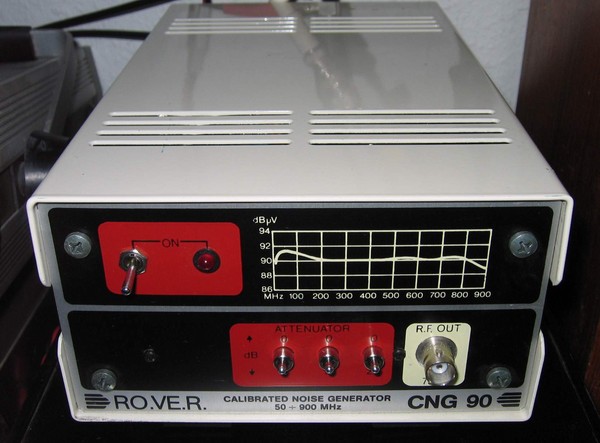

RO.VE.R Calibrated Noise Generator, 50 - 900 MHz
Output 90 dBµV

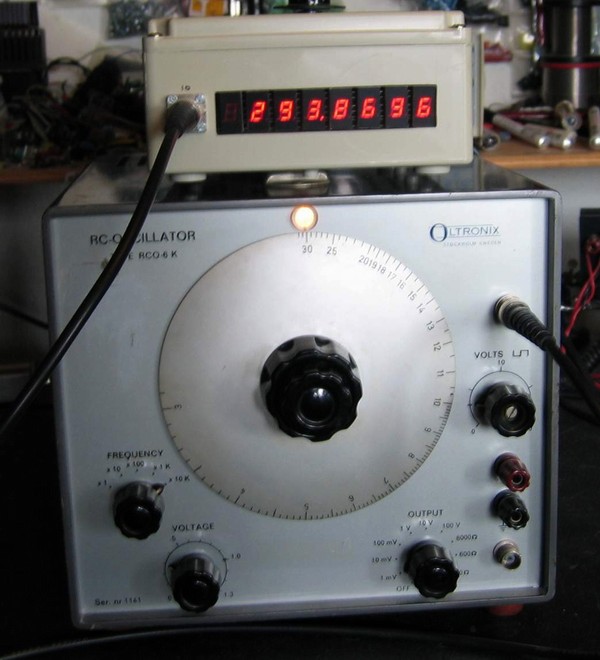

Oltronix RC-Oscillator RCO-6 K
2 Hz - 300 KHz
With homebuilt Digital Readout

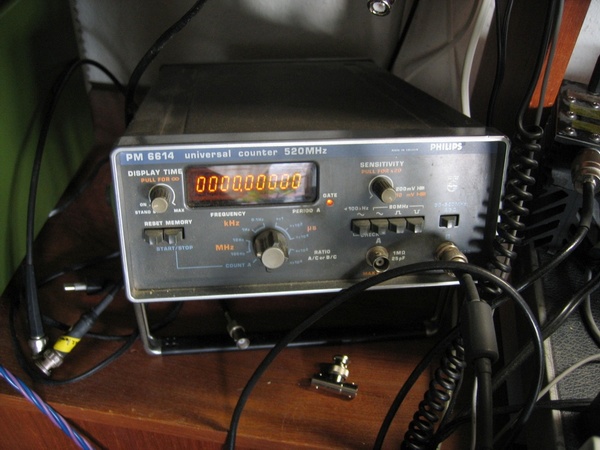

Frequency counter Philips PM 6614, 520 MHz

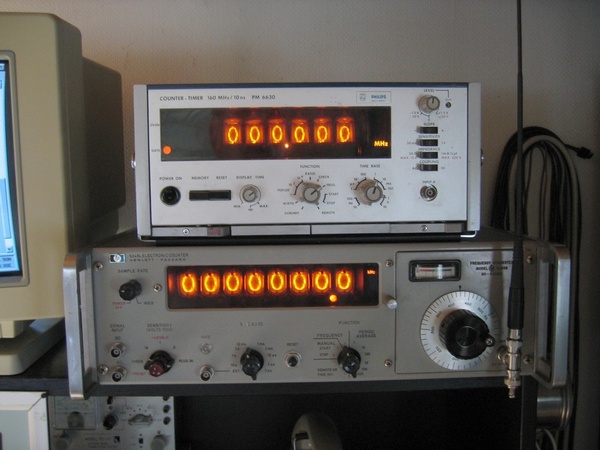

Frequency counters: Philips PM 6630, 160 MHz and HP 5245L, 500 MHz

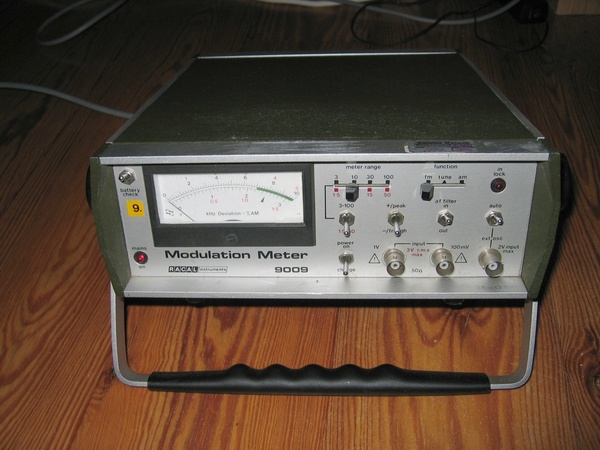

Modulation/Deviation Meter Racal 9009








Radiometer Modulation Meter AFM2/51
21 - 1000 MHz








SINAD Meter








Tektronixs 1502C
TDR Cable Tester

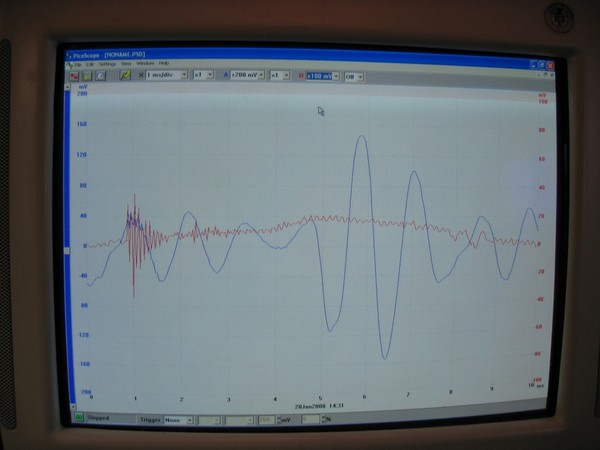

PicoScope
Computer Oscilloscope








Dataman S3 Programmer
With built in EPROM Emulator

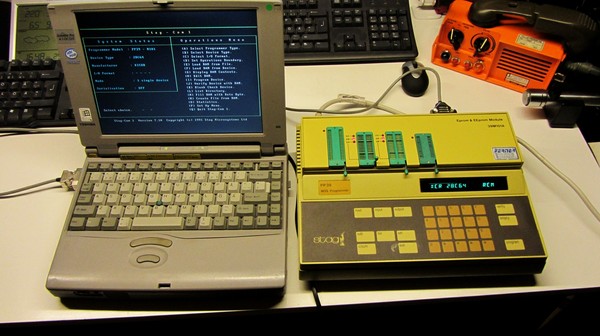

Stag PP 39 EPROM/EEPROM Programmer

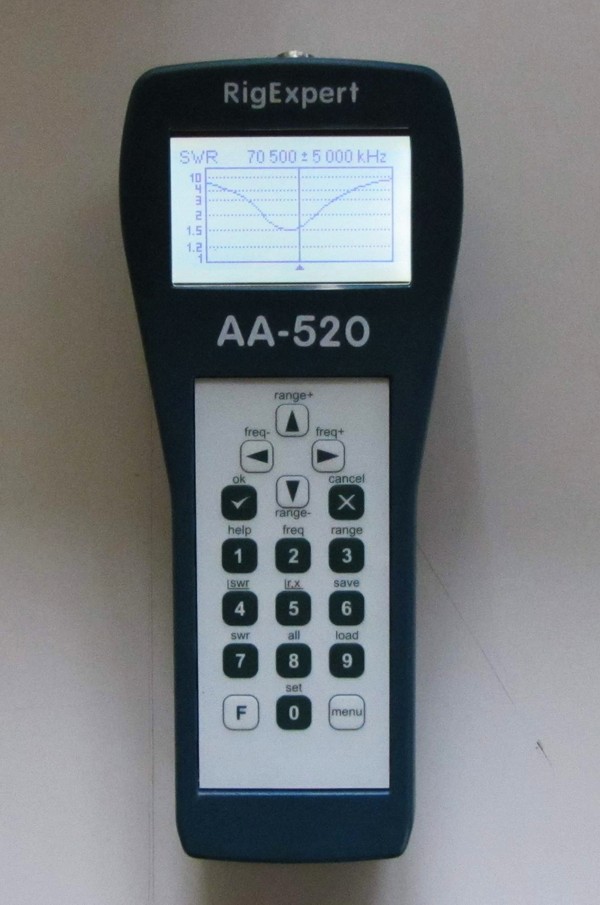

RigExpert AA-520 Antenna Analyzer
1 - 520 MHz

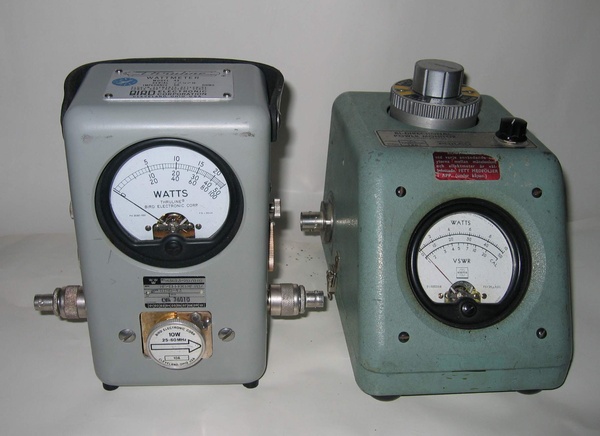

Power/SWR instruments
Bird 43 and Philco 164B

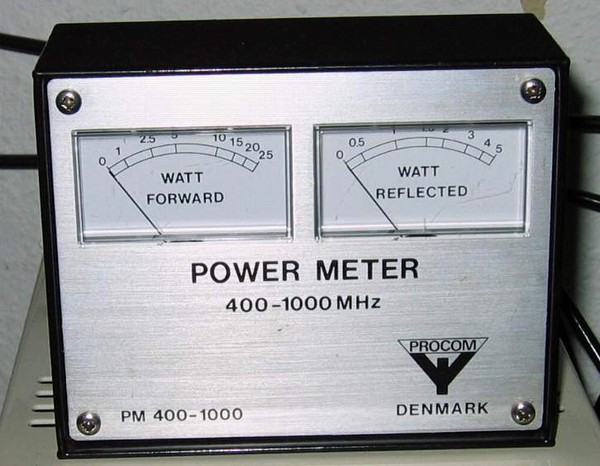

Procom PM 400-1000
Power Meter 400-1000 MHz

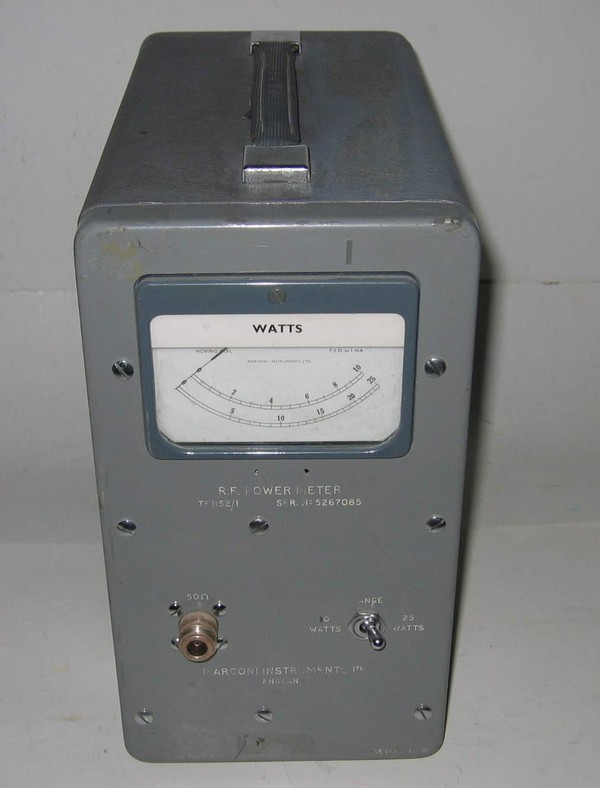

Marconi RF Power Meter TF 1152/1
0-10 and 0-25 Watts, with internal 50 Ohms Dummy Load
